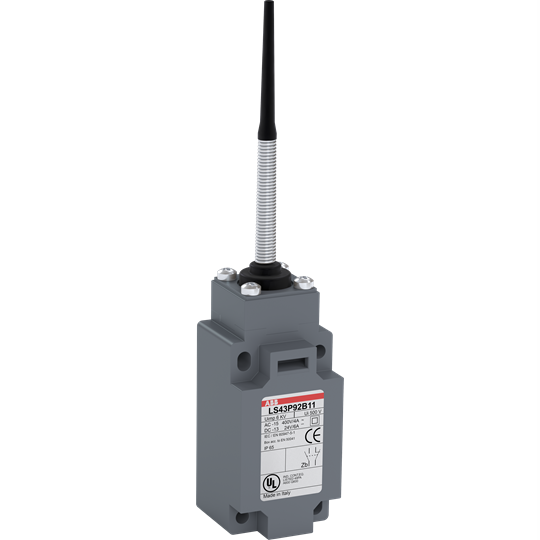

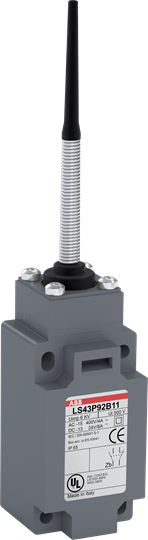

ABB LS43P92B11 Limit Switch Multidirectional Stainless Steel Spring W/Insulated Tip 1NO-1NC 41mm W Plastic

Product Code: LS43P92B11

  • Rated for multiple currents: 3.1A, 10A, 5.5A, 3A
  • IP66 protection for harsh environments
  • Durable plastic housing with stainless steel actuator
  • Multidirectional spring actuator with insulated tip
  • Over 5 million mechanical operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS40

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Multidirectional stainless-steel spring with insulated tip
Housing Material
Fiber-glass reinforced UL-V0 material

Dimensions & Physical Data

Depth
41mm
Height
195mm
Weight
0.131kg
Width
41mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
