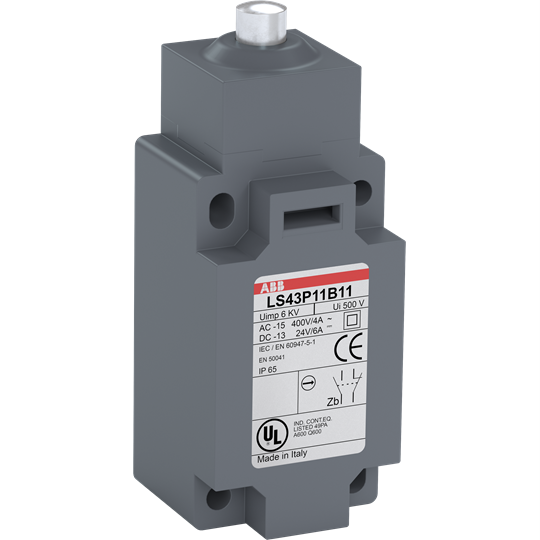

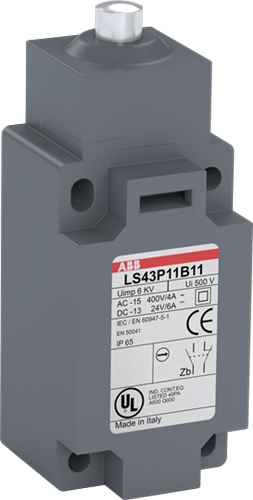

ABB LS43P11B11 Limit Switch Plain Steel Plunger 1NO-1NC 41mm W Plastic

Product Code: LS43P11B11

  • Rated current options: 3.1A, 10A, 5.5A, 3A
  • Compact size: 41x41x104 mm
  • Durable plastic housing with IP65 protection
  • Operates in -25 to 70°C environments
  • Long-lasting: 25 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS40

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Plain steel plunger
Housing Material
Fiber-glass reinforced UL-V0 material

Dimensions & Physical Data

Depth
41mm
Height
104mm
Weight
0.132kg
Width
41mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
