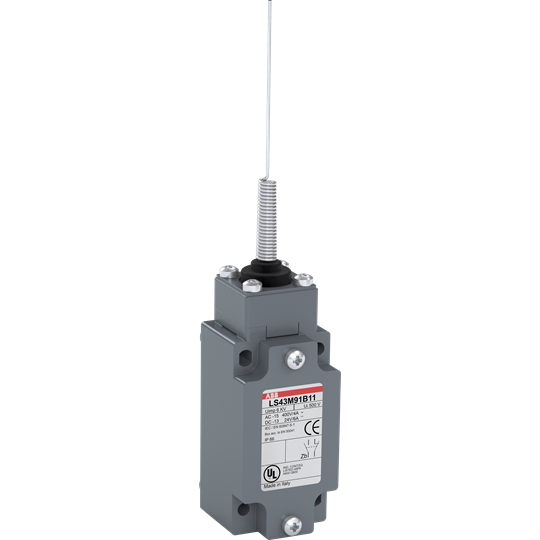

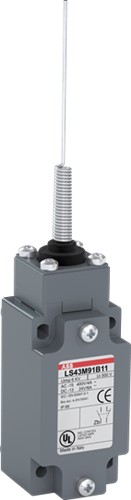

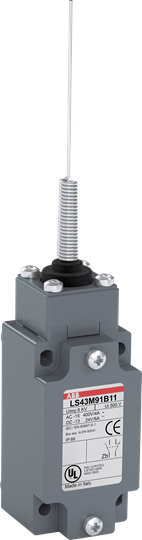

ABB LS43M91B11 Limit Switch Multidirectional Stainless Steel Spring W/Rigid End 1NO-1NC 40mm W Metal

Product Code: LS43M91B11

  • Metal housing with IP66 protection
  • Operates in -25 to 70°C temperature range
  • Multidirectional spring actuator, stainless steel
  • Snap action switch with 1NO+1NC contacts
  • High durability: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS40

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Multidirectional stainless-steel spring with rigid end
Housing Material
Zinc alloy (Zamak)

Dimensions & Physical Data

Depth
44mm
Height
199mm
Weight
0.209kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66

Documents

IPD Product Catalogue V17
