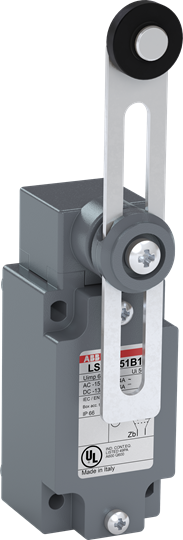

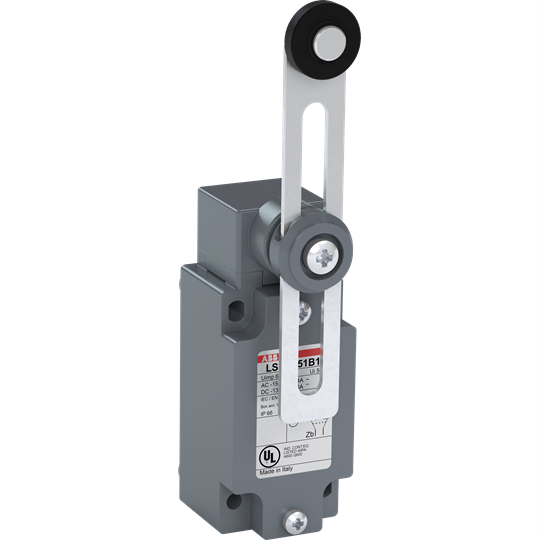

ABB LS43M51B11 Limit Switch 22mm Dia Adjustable Plastic Roller Lever 1NO-1NC 40mm W Metal

Product Code: LS43M51B11

  • Rated for 3.1 A, 10 A, 5.5 A, and 3 A
  • Metal housing with IP66 protection
  • Operates in -25 to 70°C range
  • Compact size: L60 x W40 x H138 mm
  • Durable with 25 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS40

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Adjustable 22 mm plastic roller lever
Housing Material
Zinc alloy (Zamak)

Dimensions & Physical Data

Depth
60mm
Height
138mm
Weight
0.285kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66

Documents

IPD Product Catalogue V17
