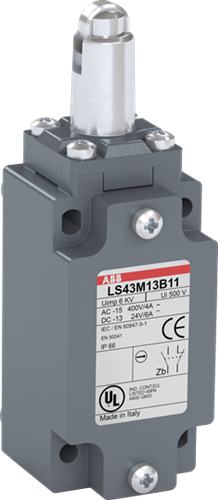

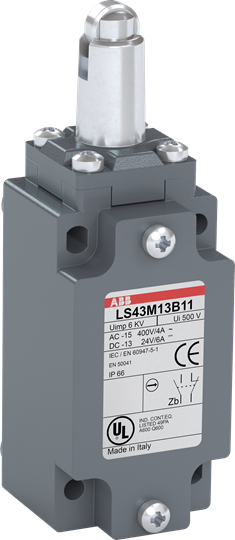

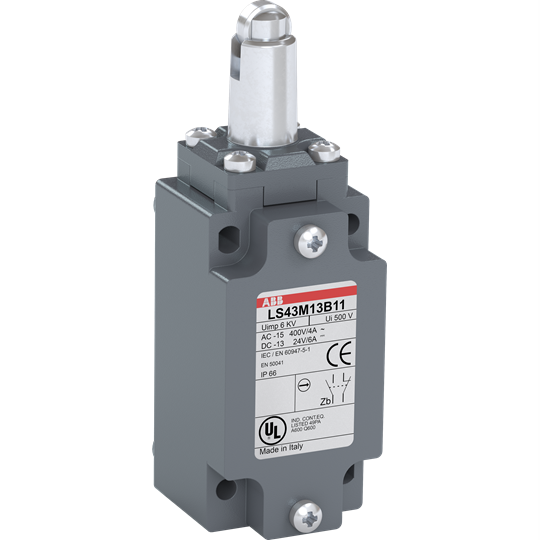

ABB LS43M13B11 Limit Switch Stainless Steel Roller Plunger 1NO-1NC 40mm W Metal

Product Code: LS43M13B11

  • Rated for multiple currents: 3.1 A, 10 A, 5.5 A, 3 A
  • Robust metal housing with IP66 protection
  • Operates in temperatures from -25 to 70°C
  • CE and UL certified for quality assurance
  • Durable roller plunger actuator made of stainless steel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS40

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Stainless-steel roller plunger
Housing Material
Zinc alloy (Zamak)

Dimensions & Physical Data

Depth
44mm
Height
120mm
Weight
0.229kg
Width
40mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66

Documents

IPD Product Catalogue V17
