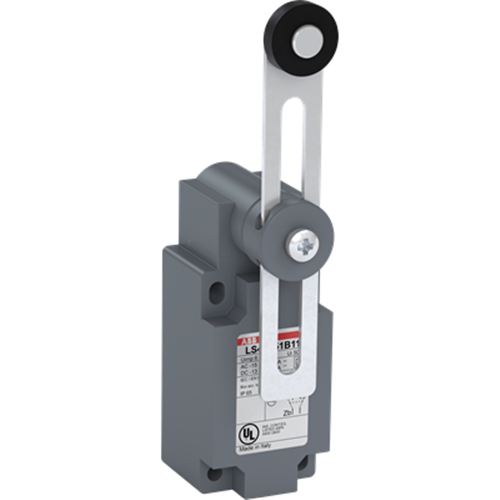

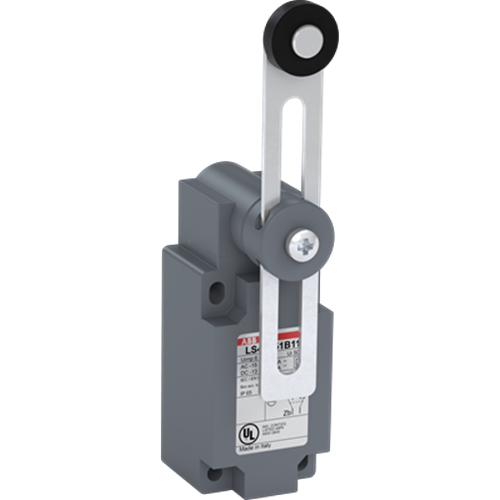

ABB LS40P51B11 Limit Switch 22mm Dia Adjustable Polyamide Roller Lever 41mm W

Product Code: LS40P51B11

  • Rated current options: 3.1A, 10A, 5.5A, 3A
  • IP65 protection for dust and water resistance
  • Operates in -25 to 70°C temperature range
  • Snap action switching with adjustable roller lever
  • High durability: 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS40

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Adjustable 22 mm polyamide roller lever

Dimensions & Physical Data

Depth
62mm
Height
135mm
Weight
0.164kg
Width
41mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
