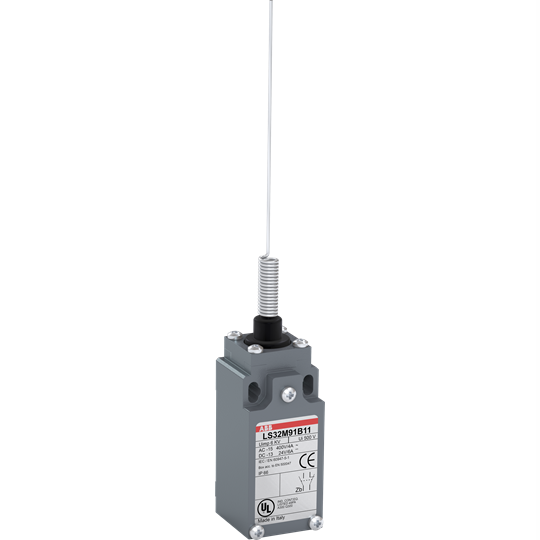

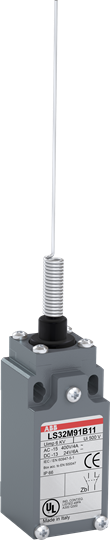

ABB LS33M91B11 Limit Switch Multidirectional Stainless Steel Spring W/Rigid End 1NO-1NC 30mm W Metal

Product Code: LS33M91B11

  • Rated for multiple currents: 3.1A, 10A, 5.5A, 3A
  • Durable metal housing with IP65 protection
  • Operates in temps from -25 to 70°C
  • Certified by CQC, Cul, CCC, CE, UKCA
  • Multidirectional spring actuator in stainless steel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS30

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Multidirectional stainless-steel spring with rigid end

Dimensions & Physical Data

Depth
33mm
Height
194mm
Weight
0.169kg
Width
30mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66

Documents

IPD Product Catalogue V17
