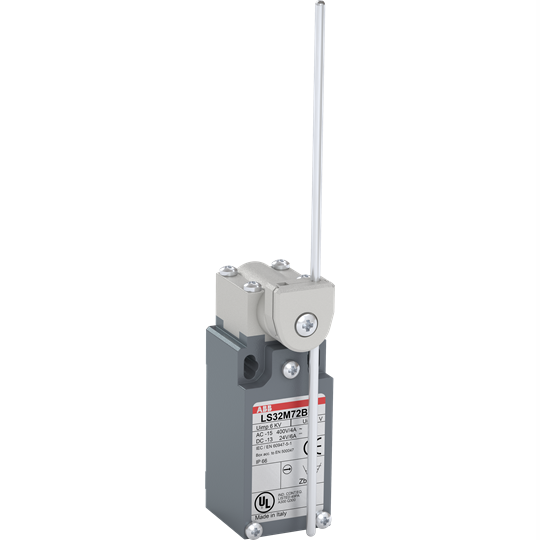

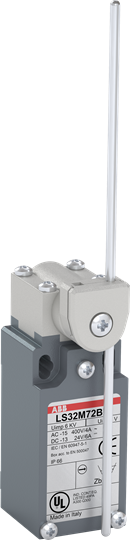

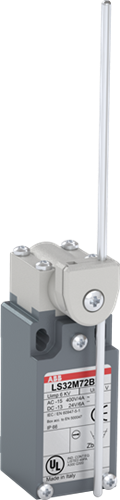

ABB LS32M72B11 Limit Switch 3mm Dia Adjustable Fiberglass Rod Lever 1NO-1NC 30mm W Metal

Product Code: LS32M72B11

  • Rated current options: 3.1 A, 10 A, 5.5 A, 3 A
  • Compact metal housing with IP66 protection
  • Operates in temps from -25 to 70°C
  • Snap action switching for quick response
  • Durable design with 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit switch
Brand
ABB
Series
LS30

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Adjustable 3 mm fibre-glass rod lever
Housing Material
Zinc alloy (Zamak)

Dimensions & Physical Data

Depth
42 mm
Height
170 mm
Weight
185 g
Width
30 mm

Environmental

Operating Temperature
-25 to 70 degC
IP Rating
IP66

Documents

IPD Product Catalogue V17
