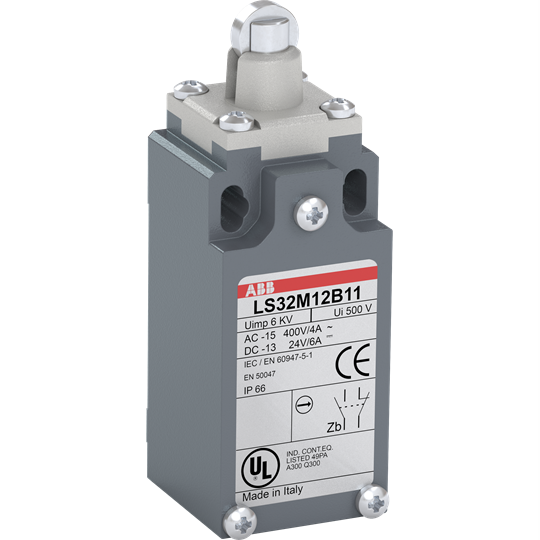

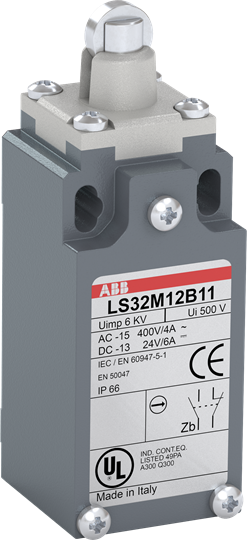

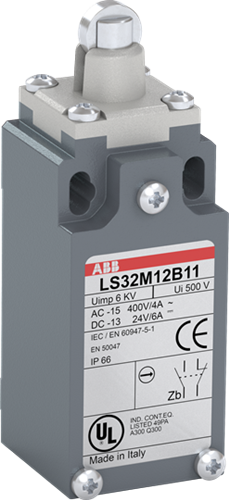

ABB LS32M12B11 Limit Switch Steel Roller Plunger 1NO-1NC 30mm W Metal

Product Code: LS32M12B11

  • Handles up to 10 A current
  • Compact metal housing, IP66 rated
  • Operates in -25 to 70°C range
  • Durable with 15 million operations
  • Roller plunger actuator for snap action
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS30

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Steel roller plunger
Housing Material
Zinc alloy (Zamak)

Dimensions & Physical Data

Depth
33mm
Height
85mm
Weight
0.18kg
Width
30mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP66

Documents

IPD Product Catalogue V17
