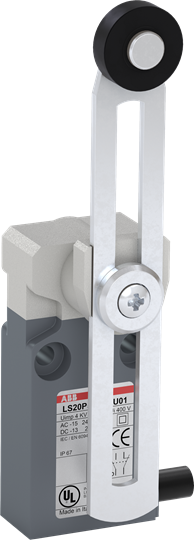

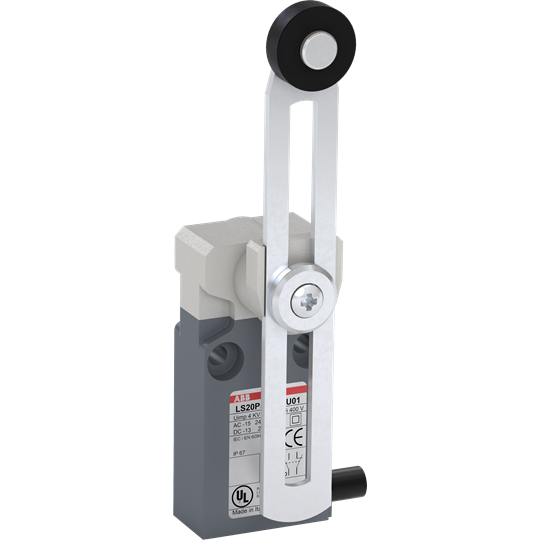

ABB LS20P51B11-U01 Limit Switch 18mm Dia Adjustable Plastic Roller Lever 1NO-1NC 30mm W Plastic

Product Code: LS20P51B11-U01

  • Rated current options: 10 A, 5.5 A, 3 A
  • IP67 protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • Durable plastic housing and actuator
  • Snap action switching with roller lever
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit switch
Brand
ABB
Series
LS20

Electrical

Cable Length
1 m
No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Adjustable 18 mm plastic roller lever
Housing Material
Fiber-glass reinforced UL-V0 material

Dimensions & Physical Data

Depth
39 mm
Height
86 mm
Weight
179 g
Width
30 mm

Environmental

Operating Temperature
-25 to 70 degC
IP Rating
IP67

Documents

IPD Product Catalogue V17
