Products

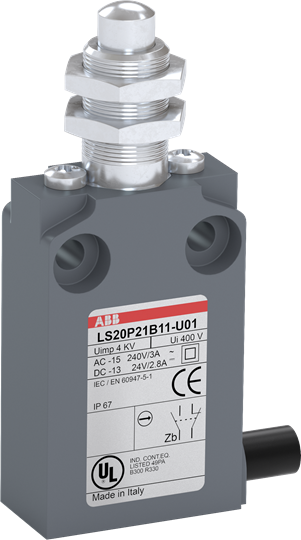

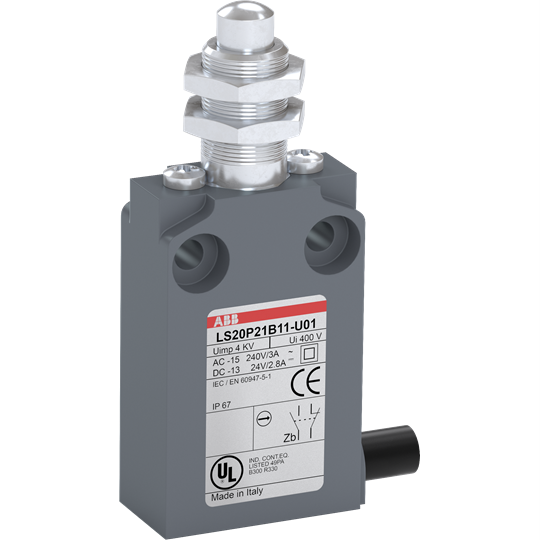

ABB LS20P21B11-U01 Limit Switch Plain Plunger W/(2) M12 Fixing Nuts 1NO-1NC 30mm W Plastic

Product Code: LS20P21B11-U01

  • Rated current options: 10A, 5.5A, 3A
  • Durable plastic housing, IP67 protection
  • Operates in -25 to 70°C temperature range
  • Compact size: 16x30x74 mm
  • High durability with 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB
Series
LS20

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Change-Over Contacts
0

Mechanical

Actuator Type
Plain plunger with two M12 fixing nuts
Housing Material
Fiber-glass reinforced UL-V0 material

Dimensions & Physical Data

Depth
16mm
Height
74mm
Weight
0.14kg
Width
30mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
