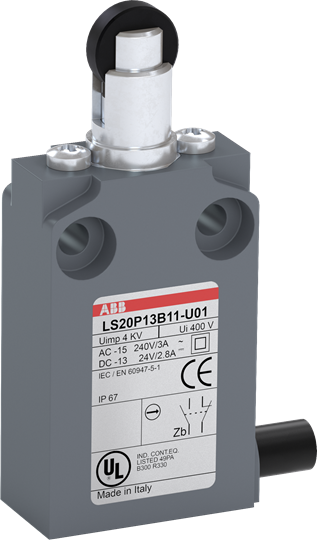

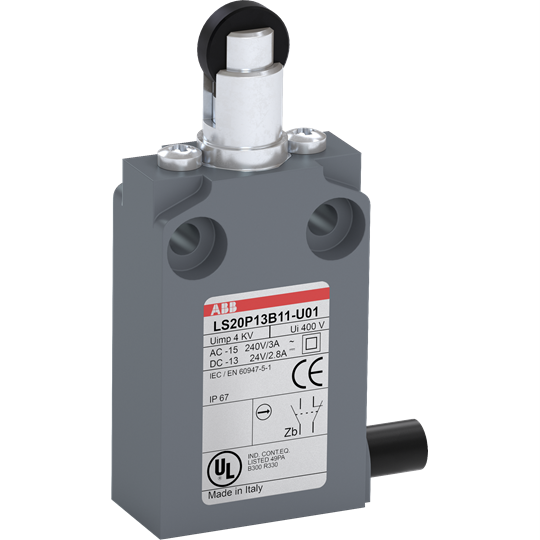

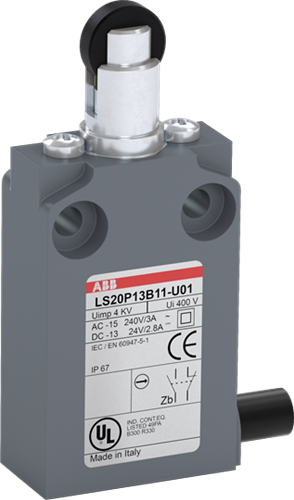

ABB LS20P13B11-U01 Limit Switch Plastic Roller Plunger 1NO-1NC 30mm W Plastic

Product Code: LS20P13B11-U01

  • Rated current options: 10A, 5.5A, 3A
  • IP67 protection for harsh environments
  • Snap action switching mechanism
  • Durable plastic housing and actuator
  • Roller plunger actuator type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Limit Switch
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
10 A
Rated Voltage (Ur)
400 V
Terminal Type
Side (Prewired UL/IEC cable)

Mechanical

Actuator Type
plastic roller plunger
Housing Material
Plastic

Dimensions & Physical Data

Depth
16 mm
Height
70 mm
Weight
0.125 kg
Width
30 mm
Cable Length
1 m

Environmental

IP Rating
IP67
Ambient Temperature
Operation -25 ... +70 °C
