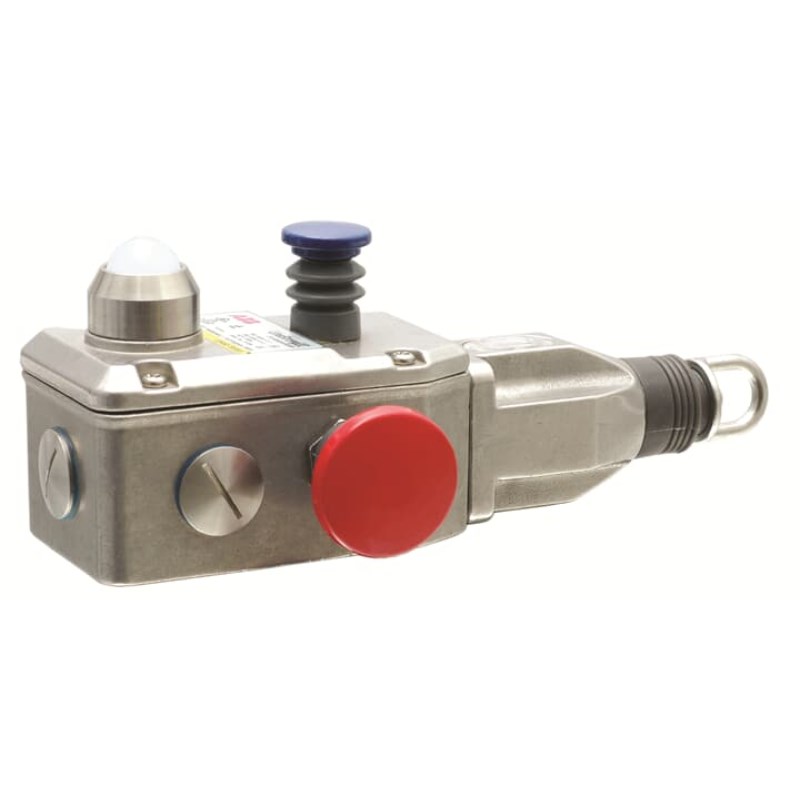

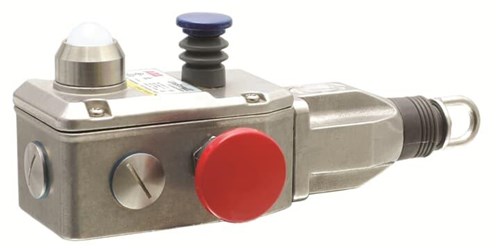

ABB LINESTRONG2Z Emergency Stop Grab Wire W/E-Stop Button 2NO+2NC Silver Contact 316 Stainless Steel

Product Code: LINESTRONG2Z

  • 24 VDC rated emergency stop switch
  • Robust 316 stainless steel housing
  • IP67, IP69K protection for harsh environments
  • Dual contact config: 2NO+2NC
  • Reliable silver contact material
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Emergency Stop Switch
Brand
ABB
Series
LineStrong

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Voltage (Ur)
24V DC
Terminal Type
Clamp, up to 2.5 mm2 conductors

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Material
Stainless steel 316

Dimensions & Physical Data

Depth
86mm
Height
239mm
Weight
1.635kg
Width
96mm

Environmental

Operating Temperature
-25°C to 80°C
IP Rating
IP67, IP69K

Documents

IPD Product Catalogue V17
