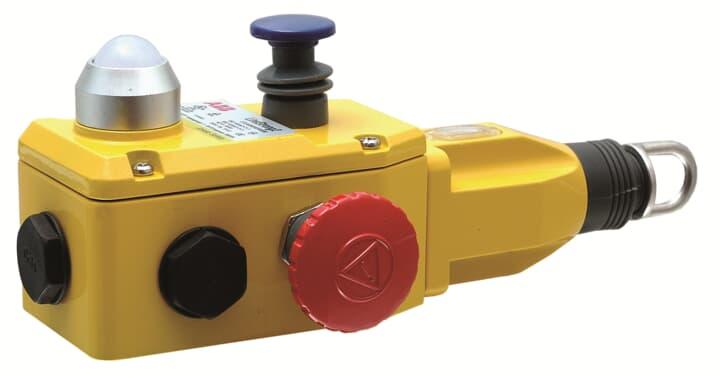

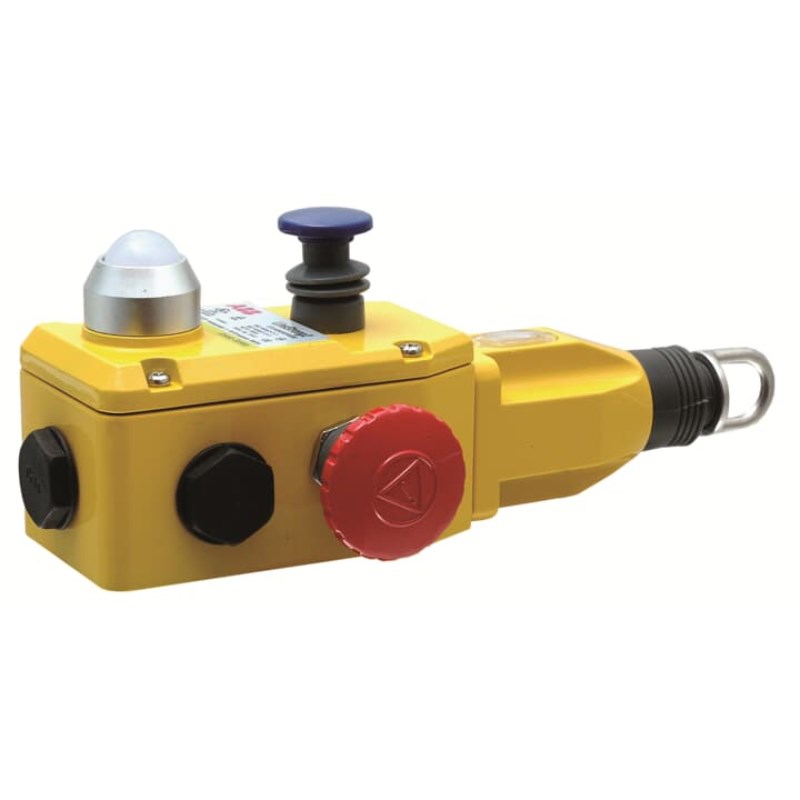

ABB LINESTRONG2 Emergency Stop Grab Wire W/E-Stop Button 2NC+2NO Silver Contact Yellow Die Cast Aluminium Alloy

Product Code: LINESTRONG2

  • Emergency Stop with 2NC+2NO contacts
  • Operates at 24 VDC
  • Durable die-cast aluminium housing
  • IP67 protection against dust and water
  • Silver contact material for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Emergency Stop Switch
Brand
ABB
Series
LineStrong

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Voltage (Ur)
24V DC
Terminal Type
Clamp, up to 2.5 mm2 conductors

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Colour
Yellow
Housing Material
Die cast

Dimensions & Physical Data

Depth
86mm
Height
239mm
Weight
0.88kg
Width
96mm

Environmental

Operating Temperature
-25°C to 80°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
