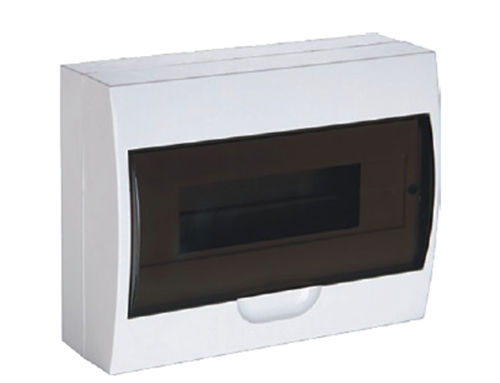

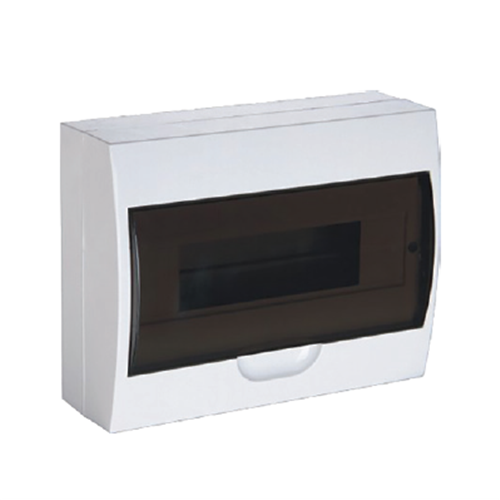

ABB LC24STE Load Center 24 -Module 2 -Row Plastic Clear Surface Mount IP40

Product Code: LC24STE

  • Polycarbonate load centre, 24 poles
  • Surface mount design
  • Rated current: 100 A, voltage: 415 V
  • IP40 protection with clear plastic cover
  • Supports 50/60 Hz frequency
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Center
Brand
ABB

Electrical

Rated Insulation Voltage (Ui)
1000V AC
Rated Current (In)
100A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
415V AC
Earth Terminal Block
Include
Neutral Terminal Block
Include
No. of Poles
24P (18 mm pitch)

Mechanical

DIN Rail
2-Row
Door Colour
Smoked transparent
Housing Colour
RAL 9010
Housing Material
High impact ABS
Mounting
Surface mount
No. of Rows
2

Dimensions & Physical Data

Depth
100mm
Height
325mm
Width
270mm
