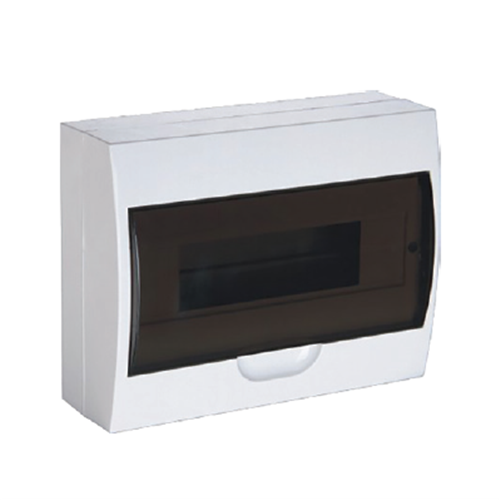

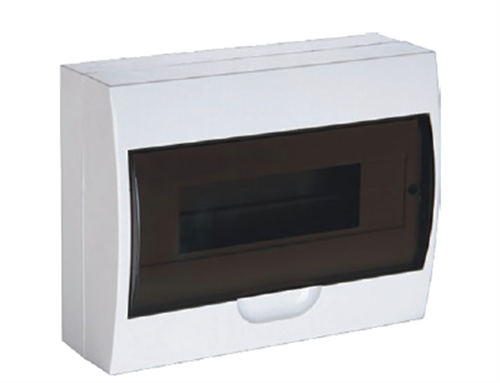

ABB LC18STE Load Center 18 -Module 1 -Row Plastic Clear Surface Mount IP40

Product Code: LC18STE

  • 18 poles for versatile circuit distribution
  • Clear polycarbonate for easy visibility
  • Surface mount design for simple installation
  • IP40 protection against solid objects
  • Supports up to 100 A current at 415 V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Center
Brand
ABB

Electrical

Rated Insulation Voltage (Ui)
1000V AC
Rated Current (In)
100A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
415V AC
Earth Terminal Block
Include
Neutral Terminal Block
Include
No. of Poles
18P (18 mm pitch)

Mechanical

DIN Rail
1-Row
Door Colour
Smoked transparent
Housing Colour
RAL 9010
Housing Material
High impact ABS
Mounting
Surface mount
No. of Rows
1

Dimensions & Physical Data

Depth
100mm
Height
364mm
Width
222mm

Documents

IPD Product Catalogue V17
