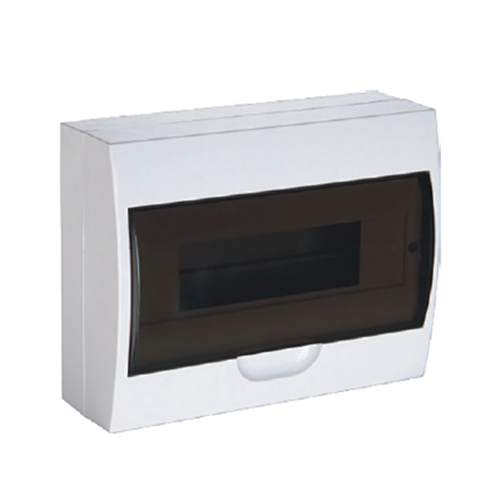

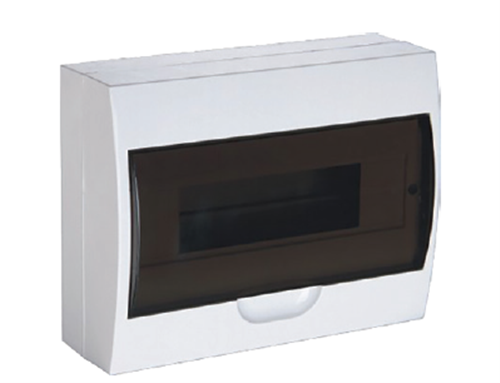

ABB LC12STE Load Center 12 -Module 1 -Row Plastic Clear Surface Mount IP40

Product Code: LC12STE

  • Polycarbonate load centre, surface mount
  • Handles up to 100 A current
  • Supports 50/60 Hz frequency
  • Accommodates 12 poles
  • Clear plastic with IP40 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Load Center
Brand
ABB

Electrical

Rated Insulation Voltage (Ui)
1000V AC
Rated Current (In)
100A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
415V AC
Earth Terminal Block
Include
Neutral Terminal Block
Include
No. of Poles
12P (18 mm pitch)

Mechanical

DIN Rail
1-Row
Door Colour
Smoked transparent
Housing Colour
RAL 9010
Housing Material
High impact ABS
Mounting
Surface mount
No. of Rows
1

Dimensions & Physical Data

Depth
100mm
Height
201mm
Width
256mm

Documents

IPD Product Catalogue V17
