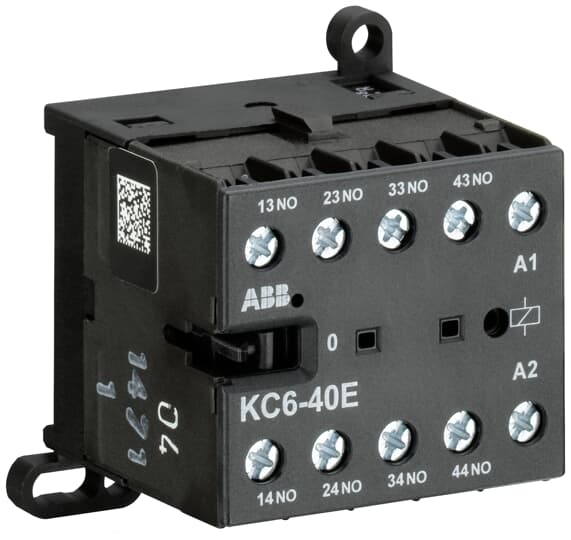

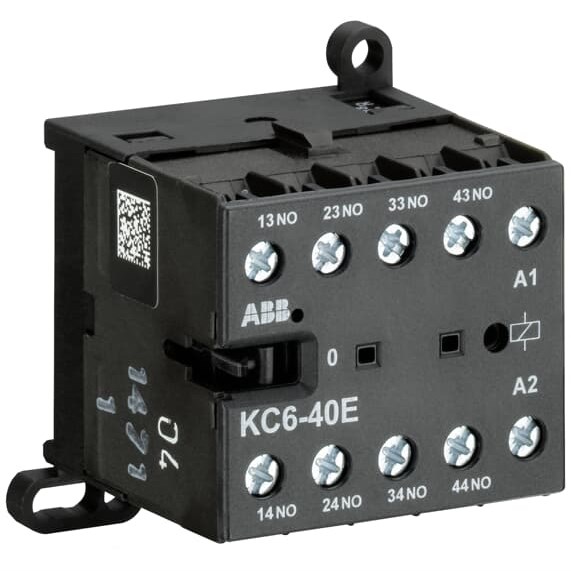

ABB KC640E04 Mini Contactor Relay 4P 4A 110-125VDC Screw DIN Rail Screw Mount

Product Code: KC640E04

  • Suitable for 110-125 VDC applications
  • Rated current capacity of 4 A
  • Compact dimensions: 52.5 x 57.5 x 46.5 mm
  • Reliable IP20 protection rating
  • Easy DIN rail or screw mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
4
No. of Poles (NO/NC)
4NO/0NC
Rated Control Supply Voltage (Us)
110 ... 125 V DC
Rated Operational Current AC-15 (Ie)
4 A
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
46.5 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
