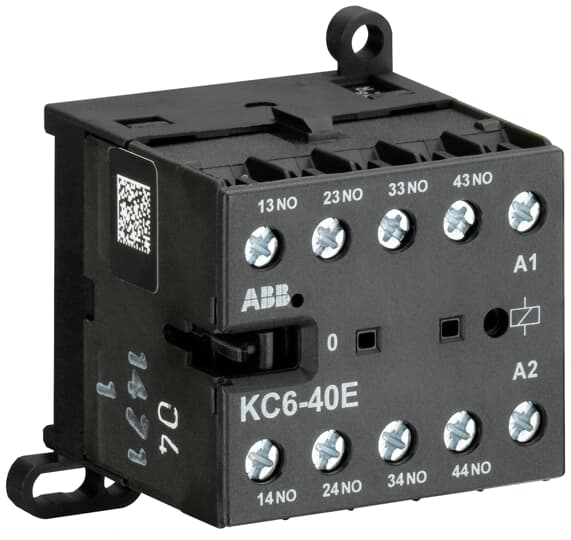

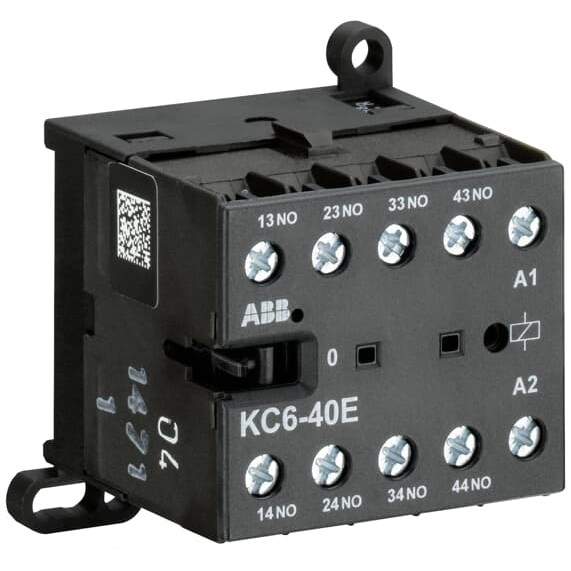

ABB KC640E01 Mini Contactor Relay 4P 4A 24VDC Screw DIN Rail Screw Mount

Product Code: KC640E01

  • Compact DIN rail or screw mounting
  • 24 VDC rated voltage, 4 A current
  • IP20 protection with screw terminals
  • Operates in -25 to 55°C temperature range
  • 4NO contact configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
4
No. of Poles (NO/NC)
4NO/0NC
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Current AC-15 (Ie)
4 A
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
46.5 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Documents

IPD Product Catalogue V17
