Products

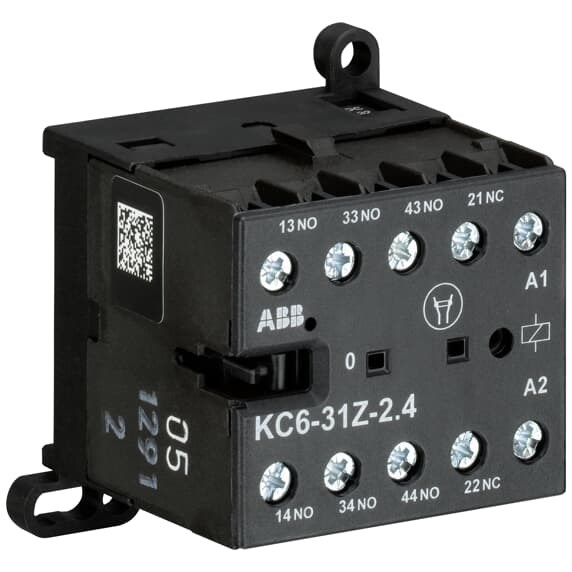

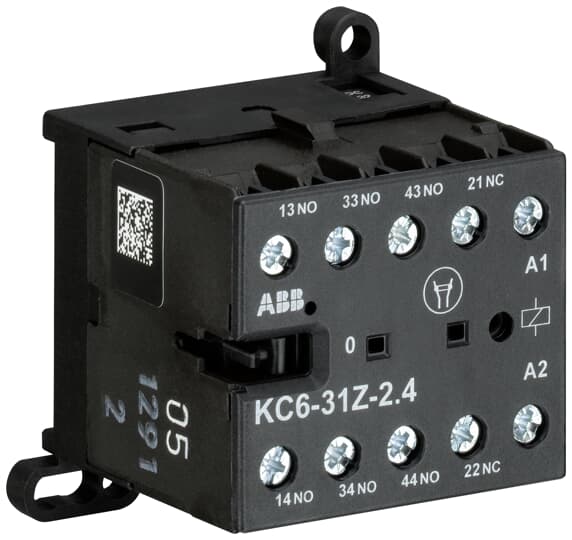

ABB KC631Z1.481 Mini Contactor Relay 4P 4A 24VDC Screw DIN Rail Screw Mount

Product Code: KC631Z1.481

  • Operates at 24 VDC, handling up to 4 A
  • Compact size: 52.5 x 57.5 x 46.5 mm
  • Contact config: 1NC+3NO for versatile use
  • Mounts on DIN rail or screw for flexibility
  • Meets IEC/EN & UL standards for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
3
No. of Poles (NO/NC)
3NO/1NC
Rated Control Supply Voltage (Us)
24 V DC
Rated Operational Current AC-15 (Ie)
4 A
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
46.5 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
