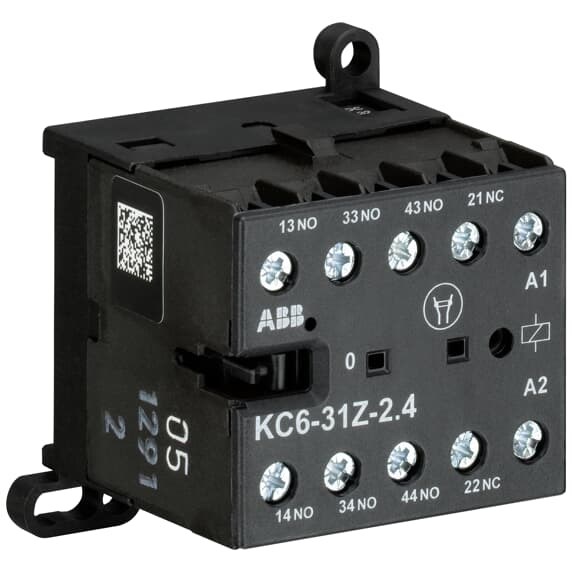

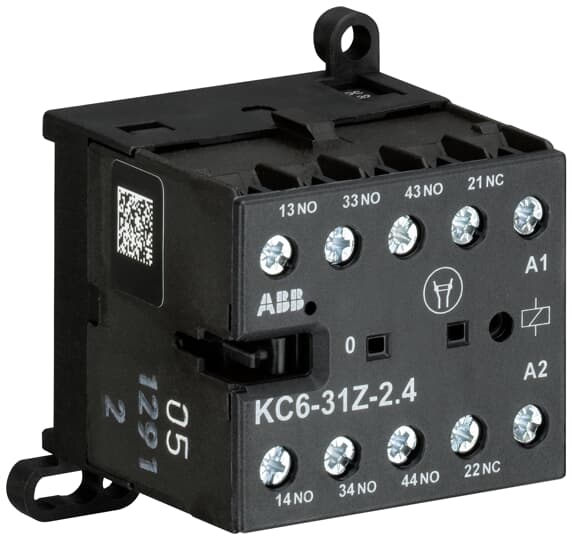

ABB KC631Z04 Mini Contactor Relay 4P 4A 110-125VDC Screw DIN Rail Screw Mount

Product Code: KC631Z04

  • Rated Voltage: 110-125 VDC, Current: 4 A
  • Contact Config: 1NC+3NO, Screw Terminals
  • Mounts on DIN Rail or with Screws
  • Compact size: W52.5 x H57.5 x D46.5 mm
  • Temp Range: -25 to 55°C, IP20 Protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Contactor Relays
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
3
No. of Poles (NO/NC)
3NO/1NC
Rated Control Supply Voltage (Us)
110 ... 125 V DC
Rated Operational Current AC-15 (Ie)
4 A
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
46.5 mm
Height
57.5 mm
Weight
0.175 kg
Width
52.5 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
