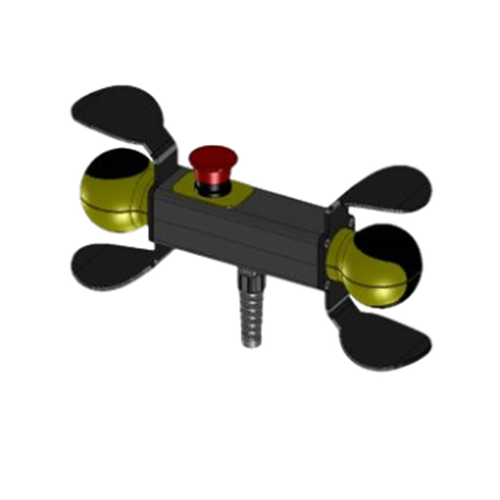

ABB JSTD25P-320700 Two-Hand-Device W/Safe Ball Spiral Cable 2 mtr 10m L Cable

Product Code: JSTD25P-320700

  • Suitable for 24 VDC systems
  • Available in 2 m and 10 m cable lengths
  • Durable aluminium and plastic housing
  • IP55 protection against dust and water
  • Operates from -25 to 50°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mobile Two Hand Device
Brand
ABB
Series
JSD-TD25P

Electrical

Rated Voltage (Ur)
10V to 30V DC

Mechanical

Actuator Type
Two Safeballs and emergency-stop pushbutton
Housing Colour
Black
Housing Material
Alloy black eloxated

Dimensions & Physical Data

Depth
70mm
Height
155mm
Weight
2.1kg
Width
315mm
Cable Length
2m, 10m

Environmental

Operating Temperature
-35°C to 50°C
IP Rating
IP55

Documents

IPD Product Catalogue V17
