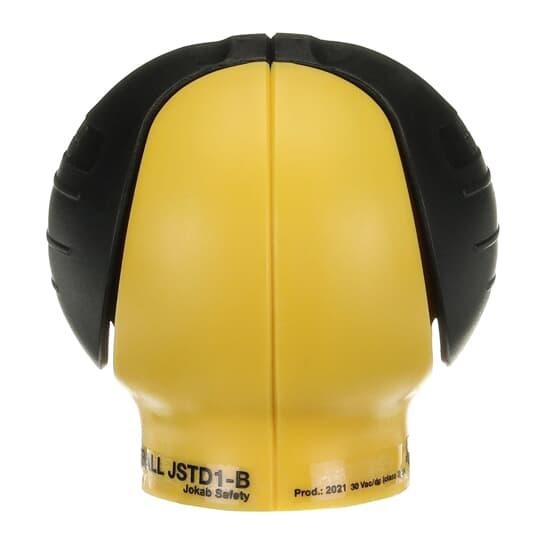

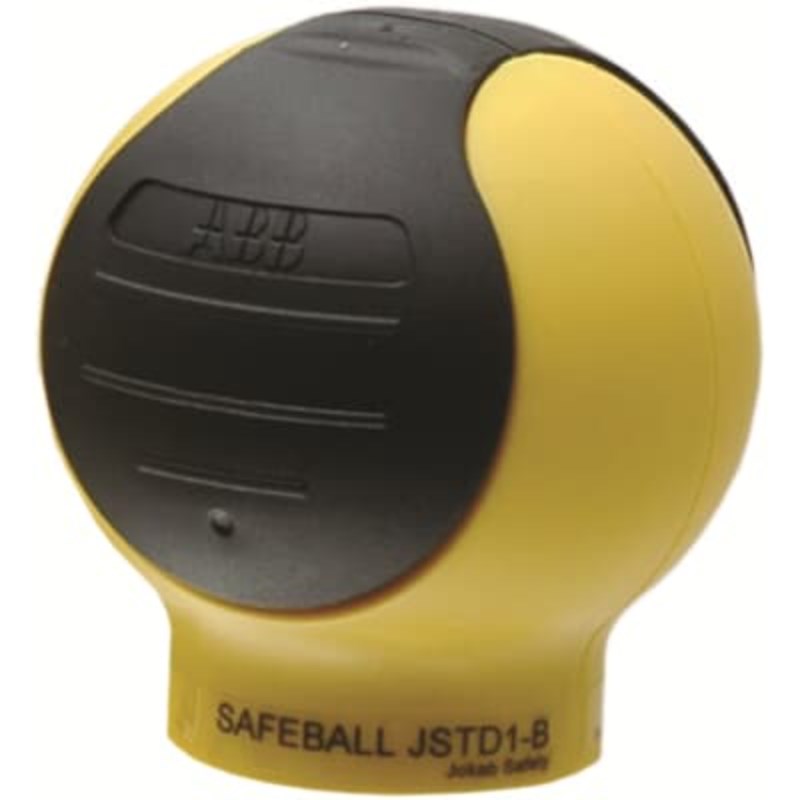

ABB JSTD1B Safeball 1NO+1NC 4 Leads 0.2m L Cable

Product Code: JSTD1B

  • 24 VDC, 2000 mA rated for reliable performance
  • Compact size with a width of 72 mm
  • Durable polypropylene housing
  • IP67 protection against dust and water
  • Operates in -25 to 50°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Control Unit
Brand
ABB
Series
Safeball™

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Plug Type
Flying leads (4 wires), 200 mm
Switching Current
2:00 AM
Switching Voltage
max.30 V DC
Rated Current (In)
0.02 A (DC-12 at 24 V)
Rated Voltage (Ur)
24 V DC (operational)

Mechanical

Actuator Type
Dual push-button spherical actuator
Housing Colour
Yellow / Black
Housing Material
Polypropylene

Dimensions & Physical Data

Depth
72 mm
Height
71 mm
Weight
approx. 0.1 kg
Width
72 mm
Cable Length
0.2 m

Environmental

IP Rating
IP67
Ambient Temperature
-25 °C to +50 °C

Documents

IPD Product Catalogue V17
