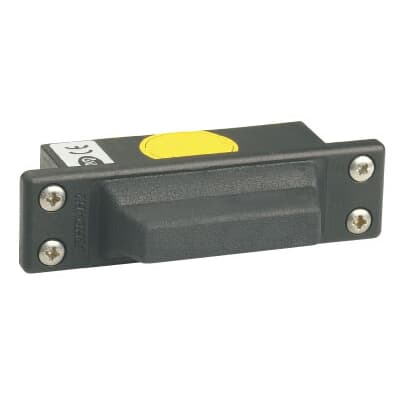

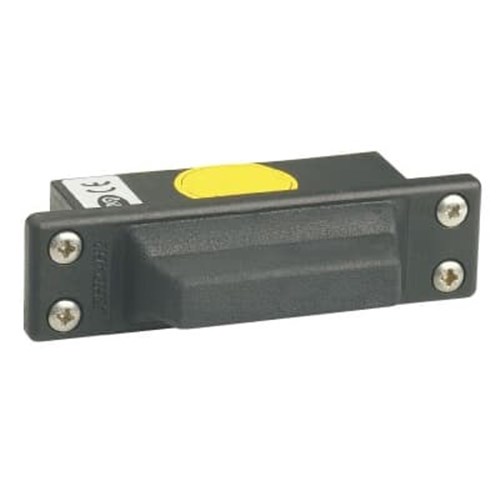

ABB JSHD4H2.1.2M JSHD4 Bottom Part With A Holder

Product Code: JSHD4H2.1.2M

  • Compact dimensions: 80x22x40.8 mm
  • Durable polypropylene housing
  • IP65 protection for harsh environments
  • Operates from -20 to 80°C
  • CE, cURus, Kiwa certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Three - Position Dual Pushbutton
Brand
ABB
Series
JSHD4H2

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.04A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
Three-position pushbutton
Housing Material
Housing: PP (polypropylene), handgrip: POM (polyoxymethylene), rubber: TPE (thermoplastic elastomer)

Dimensions & Physical Data

Depth
40.8mm
Height
22mm
Weight
0.13kg
Width
80mm
Cable Length
1.2m

Environmental

Operating Temperature
0°C to 50°C
IP Rating
IP54

Documents

IPD Product Catalogue V17
