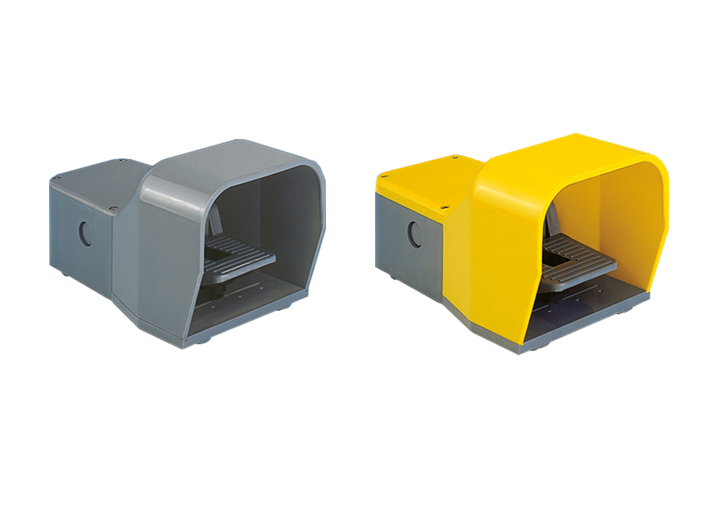

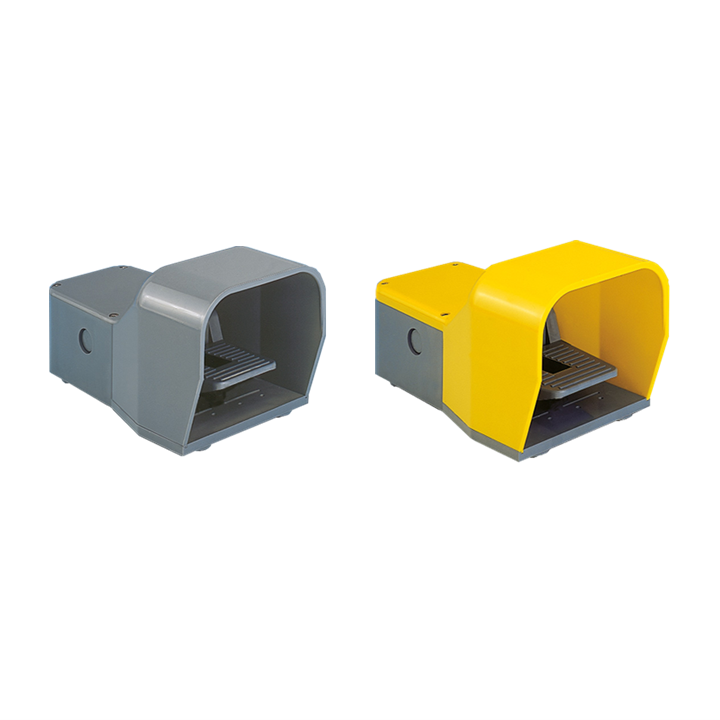

ABB IPSY1A22 Foot Switch 4A 10A 5.5A

Product Code: IPSY1A22

  • Suitable for 4 A, 10 A, and 5.5 A currents
  • IP65 protection for dust and water resistance
  • Compact size: 140 mm wide, 138 mm high
  • Durable with 30 million operations lifespan
  • Operates at both 50/60 Hz frequency
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Covered Foot Switch
Brand
ABB
Series
IPS

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A at 400V AC, 5.5A at 130V AC, 10A at 24V AC
Rated Voltage (Ur)
600V, 690V

Mechanical

Actuator Type
Free movement
Housing Colour
Yellow cover, grey base
Housing Material
Shock-resistant Bayblend FR 90 (alloyed polycarbonate and ABS)

Dimensions & Physical Data

Depth
280mm
Height
138mm
Width
140mm

Environmental

Operating Temperature
-10°C to 70°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
