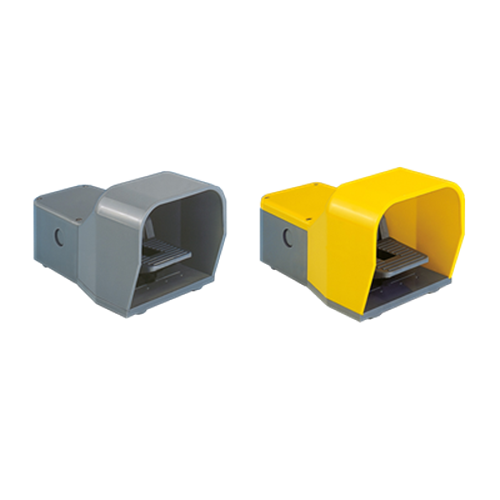

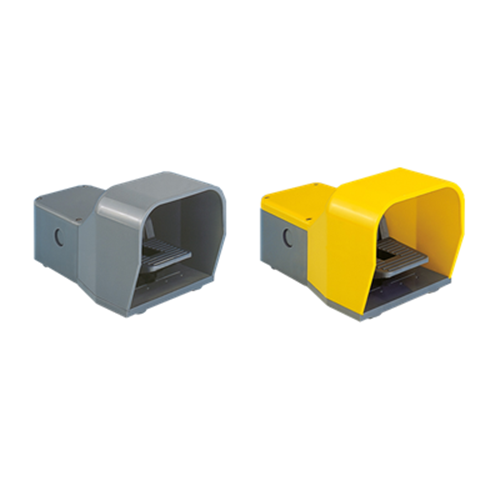

ABB IPSXCA11 Foot Switch

Product Code: IPSXCA11

  • Rated for 1000 A current
  • Durable aluminium build
  • IP65 protection rating
  • Operates from -25 to 85°C
  • Mechanical life of 1M operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Contact Bloc For Ips
Brand
ABB
Series
IPS

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
4A at 400V AC, 6A at 240V AC, 10A at 24V AC
Rated Voltage (Ur)
690V

Dimensions & Physical Data

Depth
37mm
Height
33mm
Weight
0.023kg
Width
32mm

Environmental

Operating Temperature
-10°C to 70°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
