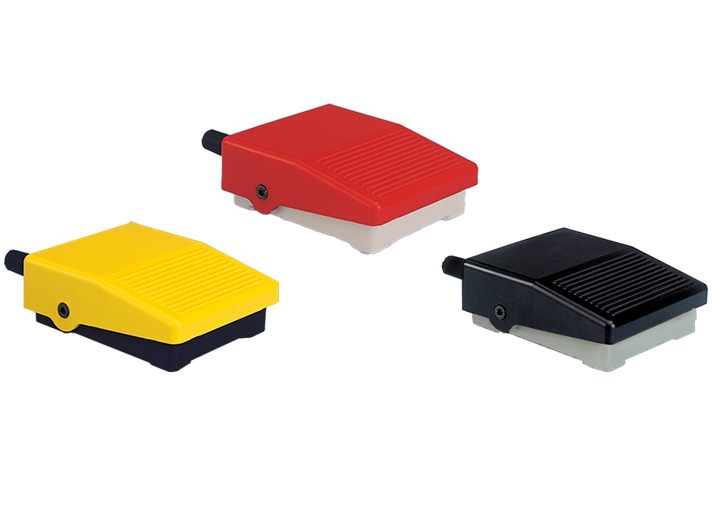

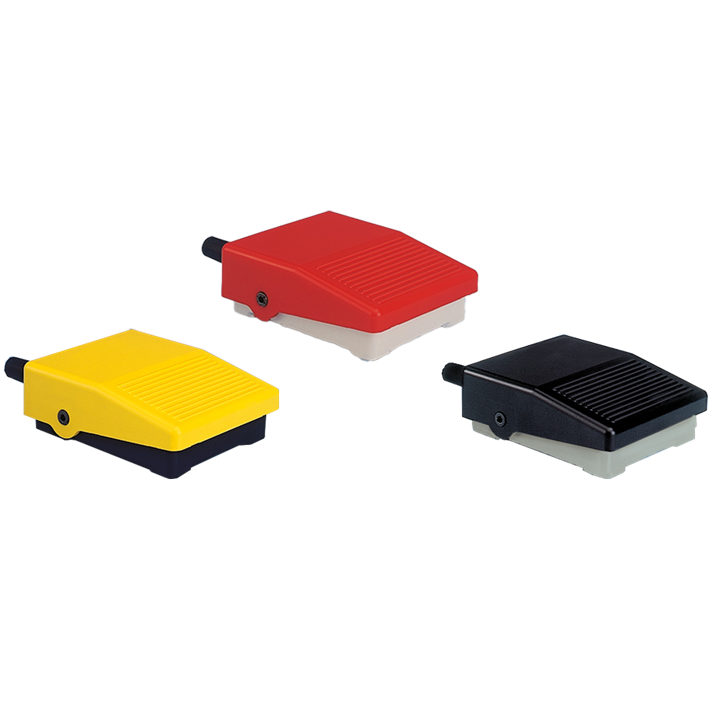

ABB IPM1Y Mini Foot Switch

Product Code: IPM1Y

  • IP40 protection for indoor use
  • 1 auxiliary contact included
  • Durable with 10 million operations
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mini Foot Switch
Brand
ABB
Series
IPM

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
60mA at 230V DC, 3A at 250V AC
Rated Voltage (Ur)
250V

Mechanical

Actuator Type
Free movement
Housing Colour
Yellow cover, black base
Housing Material
Self-extinguishing ABS

Dimensions & Physical Data

Depth
101mm
Height
35mm
Width
75mm

Environmental

Operating Temperature
-10°C to 70°C
IP Rating
IP40

Documents

IPD Product Catalogue V17
