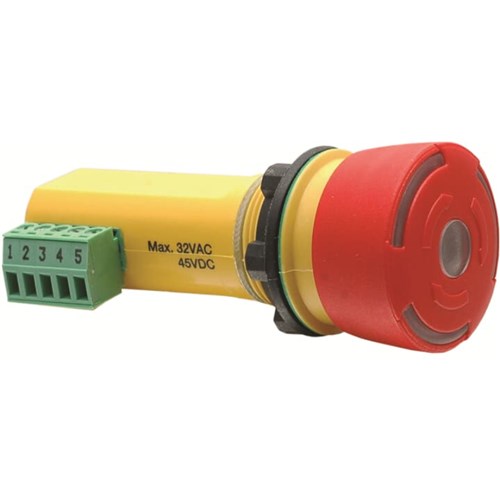

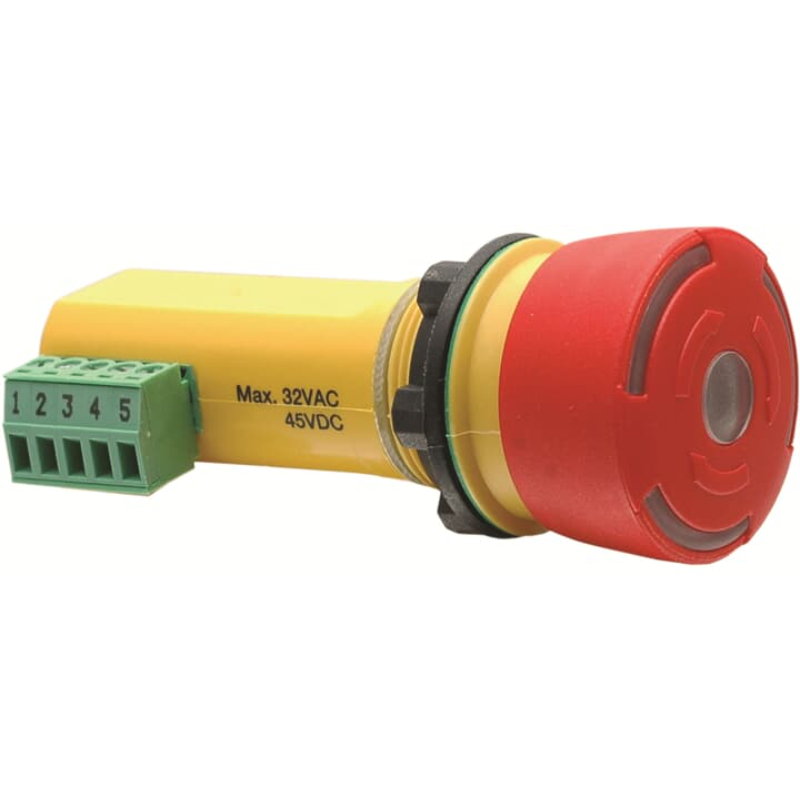

ABB INCA.1 INCA Emergency-Stop button 32.2 mm 0NO+2NC

Product Code: INCA.1

  • Emergency stop button for safety
  • Operates at 24 VDC
  • 2NC contact configuration
  • Panel mounting design
  • IP20/IP65 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Emergency Stop Button
Brand
ABB
Series
INCA

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Illumination
Non-illuminated
Rated Current (In)
0.035A
Rated Voltage (Ur)
24V DC
Terminal Type
Screw terminals

Mechanical

Pushbutton Colour
Red
Pushbutton Material
Polyamide PA66, Macromelt, polybutylenterephthalate PBT, Polypropene PP, UL 94 V0
Pushbutton Type
Mushroom
Unlocking Method
Twist release

Dimensions & Physical Data

Button Diameter (mm)
32.2mm

Environmental

IP Rating
IP20, IP65

Documents

IPD Product Catalogue V17
