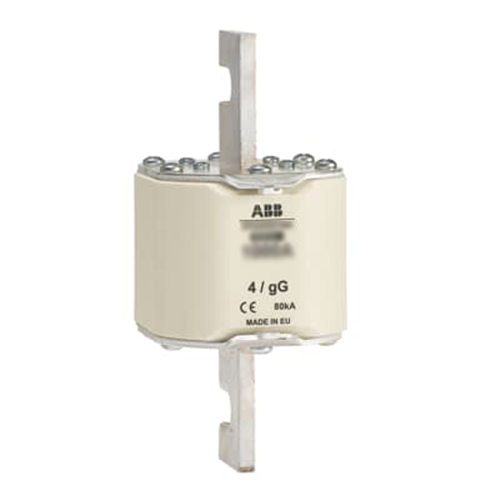

ABB HRC FUSE LINK gG 690V NH4 630A OFAA4GG630

Product Code: OFAA4GG630

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Hrc Fuse Link
Brand
ABB
Series
OFAA
Application
Cable and equipment protection in electrical distribution circuits

Electrical

Suitable For
DIN NH fuse holders
Utilization Category
gG
Breaking Capacity
80kA AC / 80kA DC
Rated Current (In)
630A
Rated Voltage (Ur)
690V AC / 250V DC
Speed Class
gG

Mechanical

Body Style
Square body
Indicators
Dual indicator
Mounting
DIN fuse holder
Size Code
NH4
Connection/Termination
Knife blade
Fuse Holder
DIN NH fuse holder

Dimensions & Physical Data

Depth
119mm
Height
200mm
Weight
2kg
Width
89mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269 CE Declaration of Conformity; RoHS; REACH

Documents

IPD Product Catalogue V17
