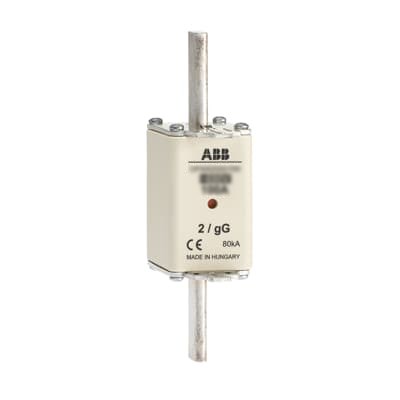

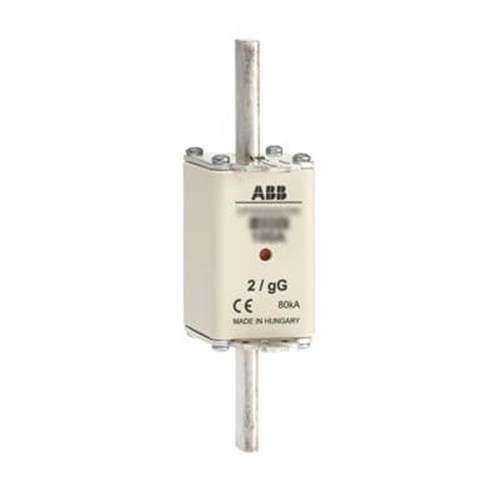

ABB HRC FUSE LINK GG 690V NH2 315A0

Product Code: OFAA2GG315

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Hrc Fuse Link
Brand
ABB
Series
OFAA
Application
Cable protection / equipment protection

Electrical

Utilization Category
gG
Breaking Capacity
80kA AC / 80kA DC
Rated Current (In)
315A
Rated Voltage (Ur)
690V AC / 250V DC

Mechanical

Body Style
NH blade
Indicators
Dual indication
Mounting
DIN fuse system
Size Code
NH2
Connection/Termination
Knife blade contacts

Dimensions & Physical Data

Depth
72mm
Height
150mm
Weight
0.63kg (Approx.)
Width
50mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60269

Documents

IPD Product Catalogue V17
