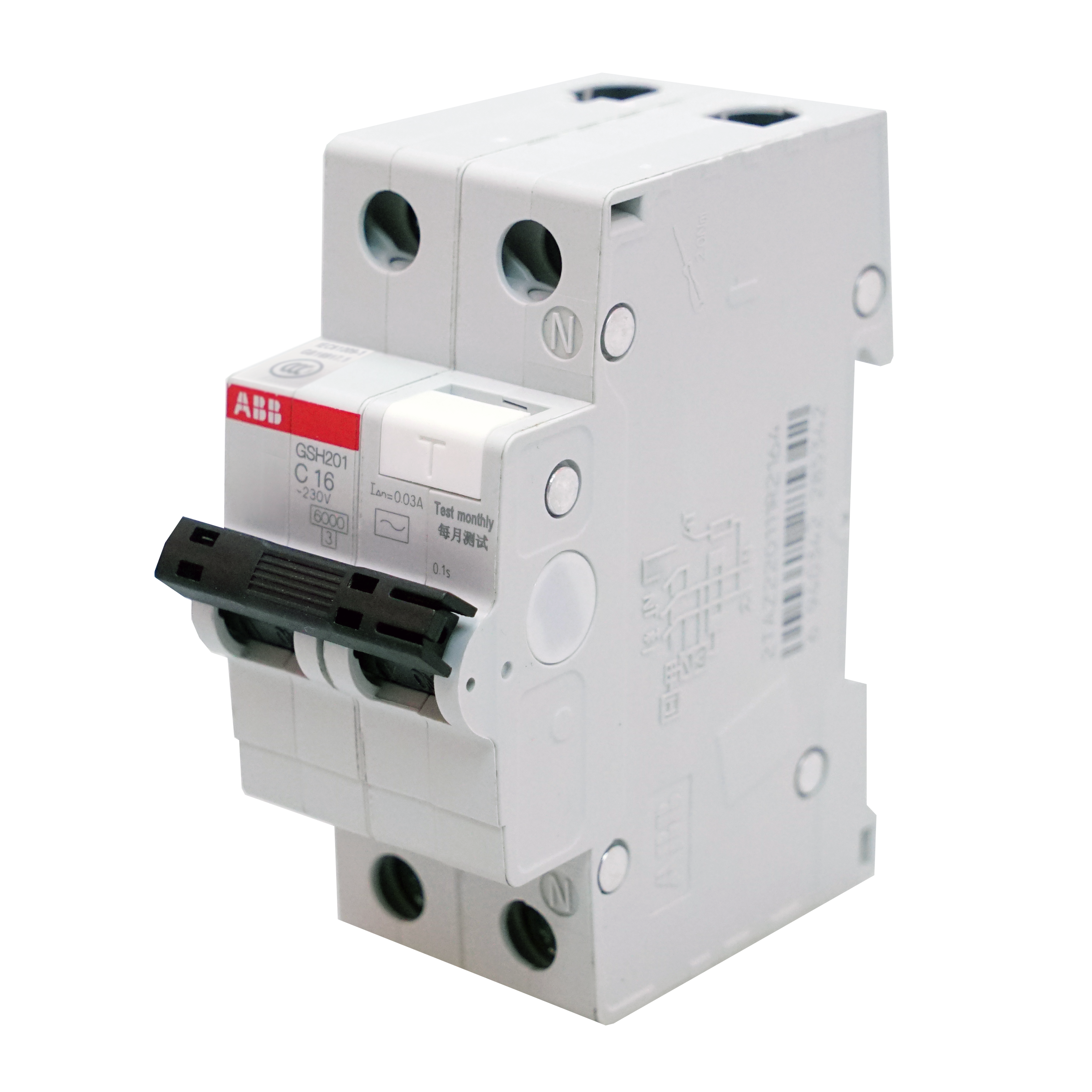

STAGEIPD STAGE DEV (25 Mar 2026)ABB GSH201C8A30 Residual Current Breaker with Overcurrent 6 kA 1P+N-P 30mA 8A C-Curve TypeA DIN Rail Mount IP20

Product Code: GSH201C8A30

8 A rated current with 230/240 VAC voltage
Compact size: 35 mm width, 85 mm height
IP20 protection for safe indoor use
Complies with IEC, GB/T, AS/NZS standards
Type A residual current with C curve

1

Specifications

General

Product Type

Residual Current Circuit Breakers With Overcurrent Protection RCBO

Brand

ABB

Series

GSH201

Electrical

No. of Poles (Total) 1P+N	Rated Current (In) 8 A	Rated Frequency 50/60 Hz
Rated Voltage (Ur) 230/240 V AC	Trip Curve C	Terminal Type Cage
Residual Current Type Type A	Rated Residual Current 30 mA	Electrical Life 10000 cycle
Mechanical Life 20000 cycle

Dimensions & Physical Data

Depth 69 mm	Height 85 mm	Weight 0.171 kg
Width 35 mm	Width in No. of Modular Spacing 2

Environmental

Storage Temperature

-40 to 70 °C

Operating Temperature

-25 to 55 °C

IP Rating

Open air IP20; Enclosure with cover IP40

Safety, Standards & Compliance

Standards and Approvals

IEC 61009-1; GB/T 16917.1; AS/NZS 61009.1
