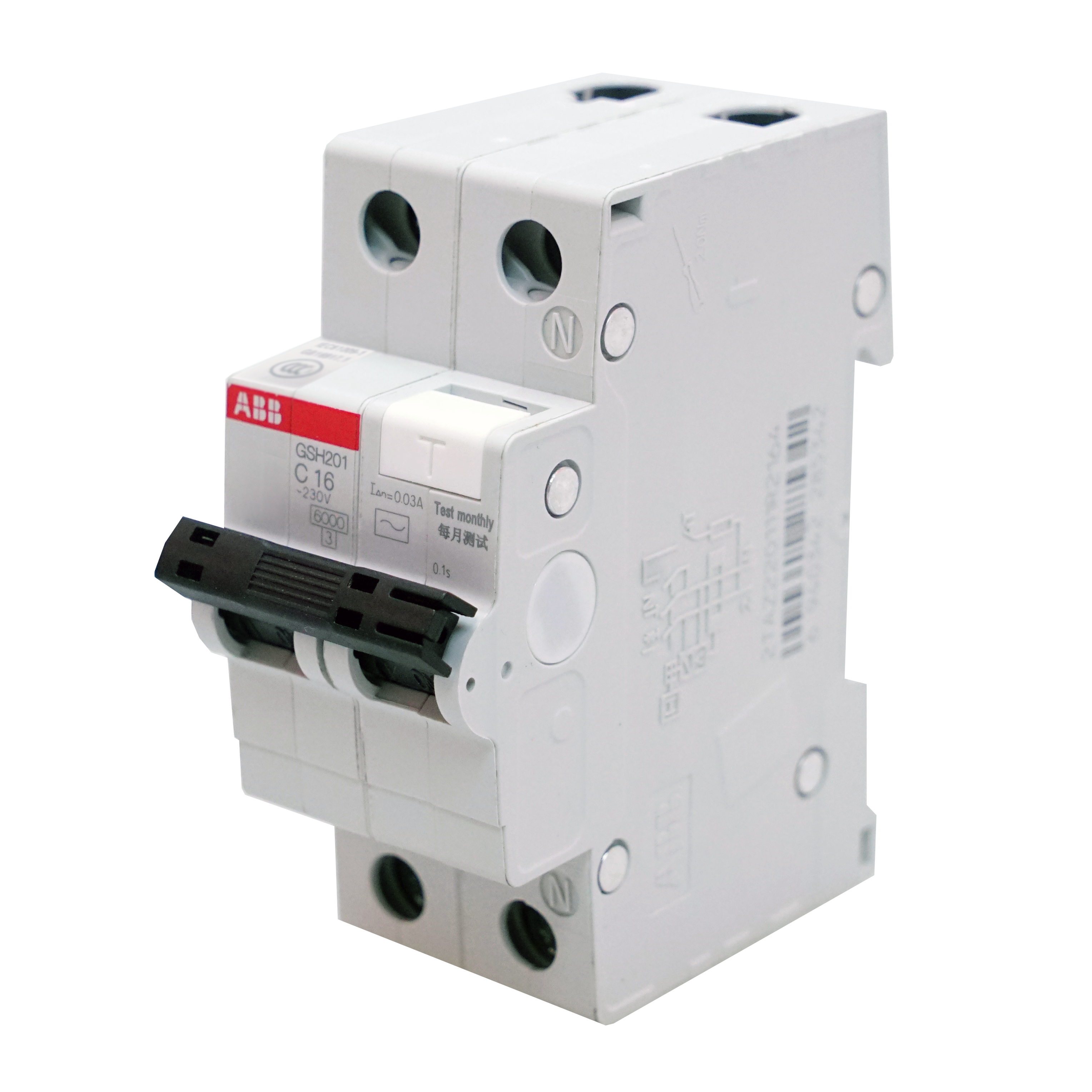

ABB GSH201C50A30 Residual Current Breaker with Overcurrent 6 kA 1P+N-P 30mA 50A C-Curve TypeA DIN Rail Mount IP20

Product Code: GSH201C50A30

  • 50 A, 230/240 VAC RCBO with Type A residual current
  • Compact design: 35 mm width, DIN Rail mounting
  • Complies with IEC, GB/T & AS/NZS standards
  • Operates in -25 to 55°C environment
  • IP20 protection with cage terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breakers With Overcurrent Protection RCBO
Brand
ABB
Series
GSH201

Electrical

No. of Poles (Total)
1P+N
Rated Current (In)
50A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230/240V AC
Trip Curve
C
Terminal Type
Cage
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.185kg
Width
35mm
Width in No. of Modular Spacing
2

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
Open air IP20; Enclosure with cover IP40

Safety, Standards & Compliance

Standards and Approvals
IEC 61009-1; GB/T 16917.1; AS/NZS 61009.1

Documents

IPD Product Catalogue V17
