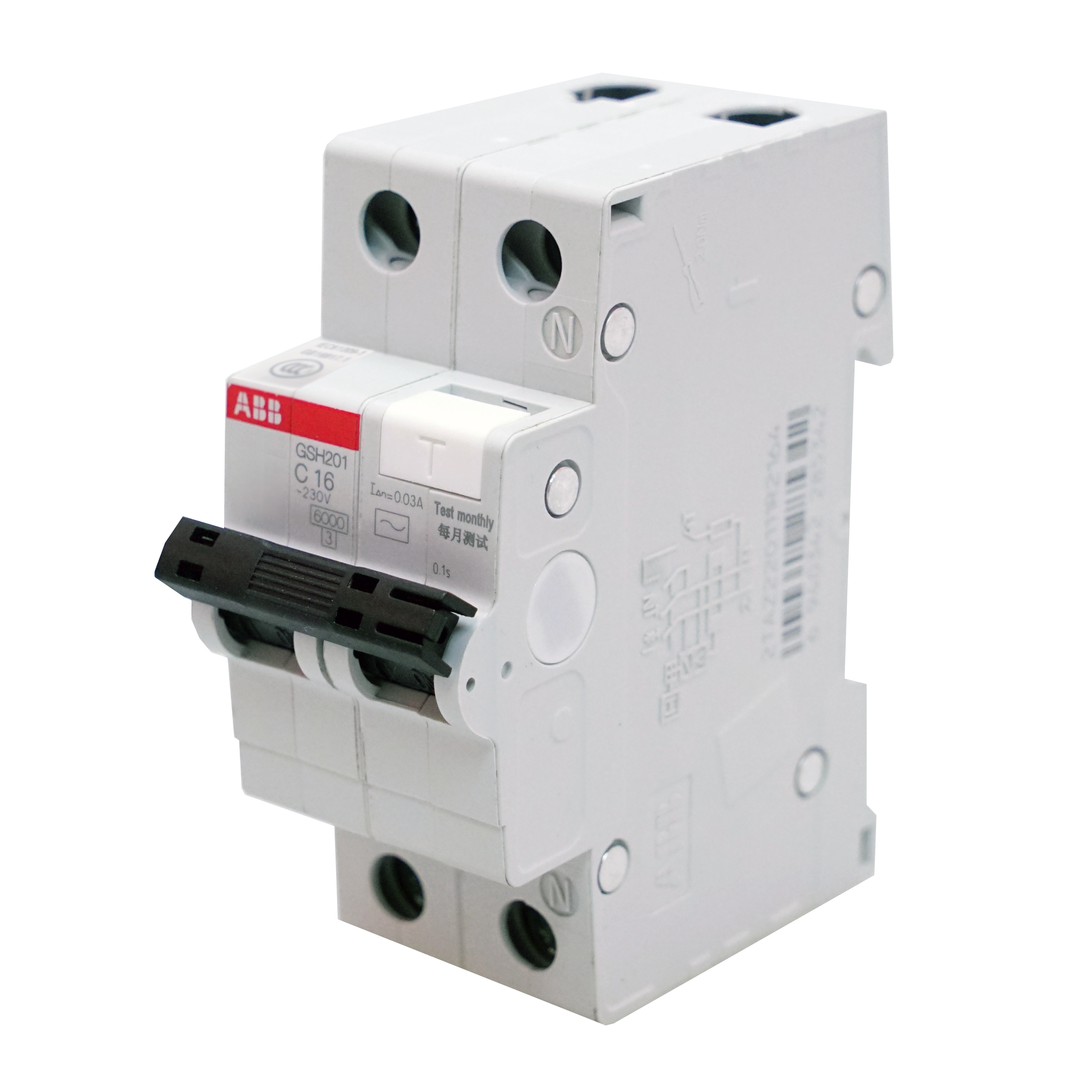

STAGEIPD STAGE DEV (25 Mar 2026)ABB GSH201C16A30 Residual Current Breaker with Overcurrent 6 kA 1P+N-P 30mA 16A C-Curve TypeA DIN Rail Mount IP20

Product Code: GSH201C16A30

Rated current of 16 A for reliable performance
Suitable for 230/240 VAC applications
Compact size: 35 mm width, DIN rail mountable
Ensures safety with IP20 protection rating
Complies with IEC, GB/T, AS/NZS standards

1

Specifications

General

Product Type

RCBO

Brand

ABB

Series

GSH201

Electrical

No. of Poles (Total) 1P+N	Rated Current (In) 16A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 230/240V	Trip Curve C	Residual Current Type Type A
Rated Residual Current 30mA

Mechanical

Mounting

DIN rail

Dimensions & Physical Data

Depth 69mm	Height 85mm	Weight 0.171kg
Width 35mm	Width in No. of Modular Spacing 2	Pole Width 18mm

Environmental

Rated Surrounding Temperature Without Derating 30°C	Storage Temperature -40°C to 70°C	Operating Temperature -25°C to 55°C
IP Rating IP2X, IP4X

Safety, Standards & Compliance

Standards and Approvals

IEC 60898-1, IEC/EN 60664-1

Other

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6kA
