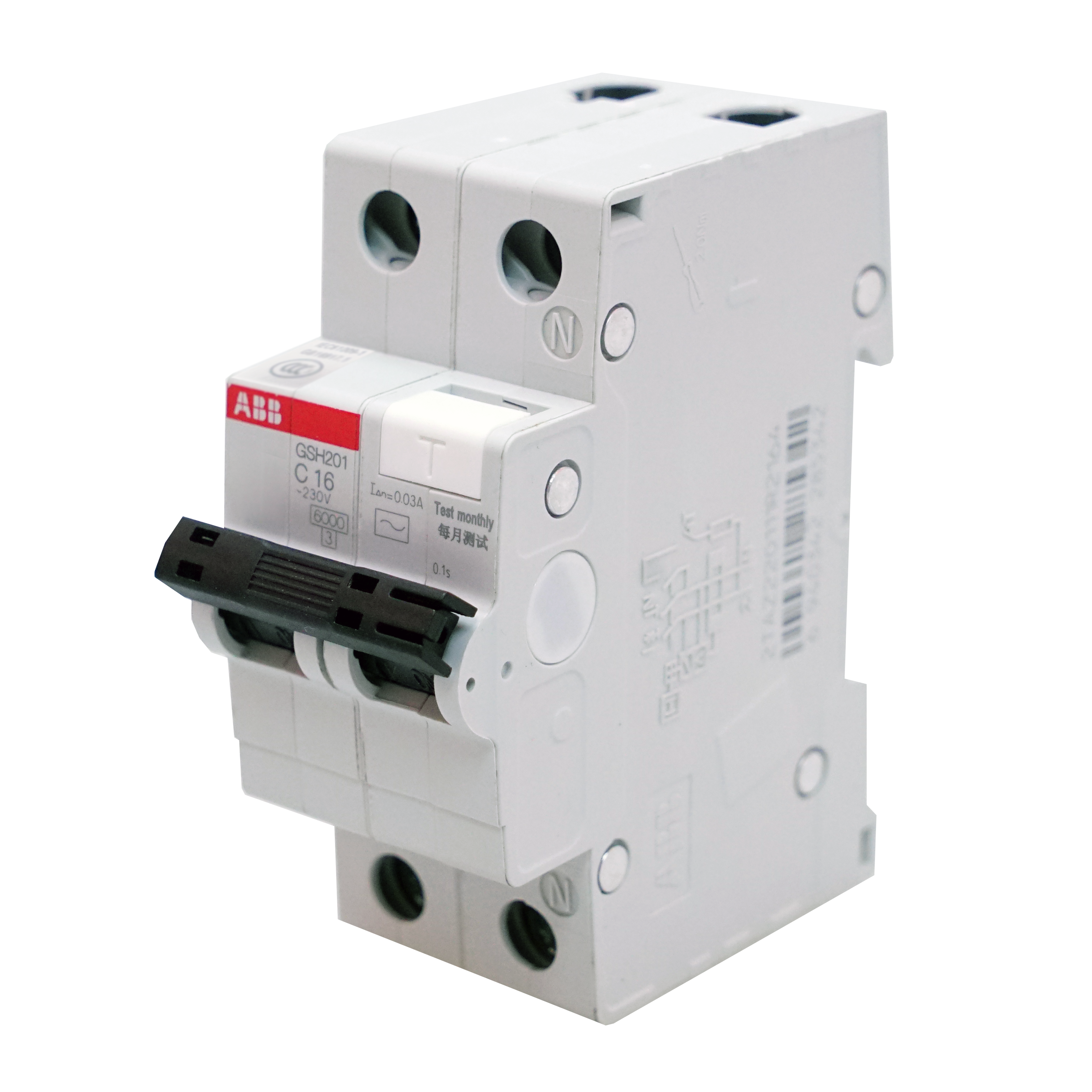

STAGEIPD STAGE DEV (25 Mar 2026)ABB GSH201C10A30 Residual Current Breaker with Overcurrent 6 kA 1P+N-P 30mA 10A C-Curve TypeA DIN Rail Mount IP20

Product Code: GSH201C10A30

10 A, 230/240 VAC rated RCBO
Single pole with neutral (1P+N)
IP20 protection for indoor use
Fits standard DIN rail mounting
Complies with IEC and AS/NZS standards

1

Specifications

General

Product Type

RCBO

Brand

ABB

Series

GSH201

Electrical

No. of Poles (Total) 1P+N	Rated Current (In) 10 A	Rated Frequency 50 / 60 Hz
Rated Voltage (Ur) 230/240 V	Trip Curve C	Residual Current Type Type A
Rated Residual Current 30 mA

Mechanical

Mounting

DIN rail

Dimensions & Physical Data

Depth 69 mm	Height 85 mm	Weight 0.171 kg
Width 35 mm	Width in No. of Modular Spacing 2	Pole Width 18 mm

Environmental

Rated Surrounding Temperature Without Derating 30°C	Storage Temperature -40…+70°C	Operating Temperature -25 … 55 °C
IP Rating IP2X, IP4X

Safety, Standards & Compliance

Standards and Approvals

IEC 60898-1, IEC/EN 60664-1

Other

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6 kA
