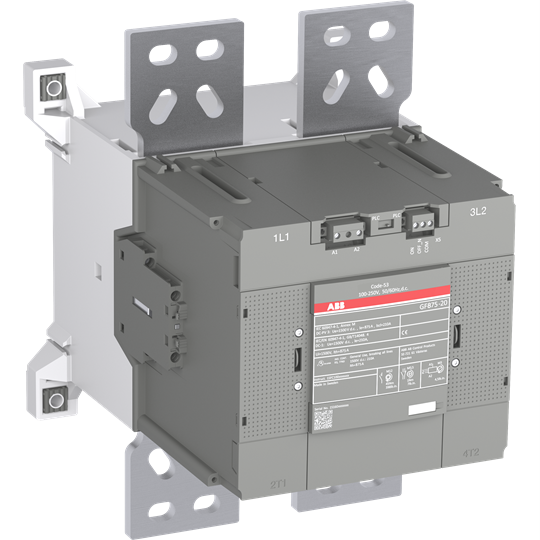

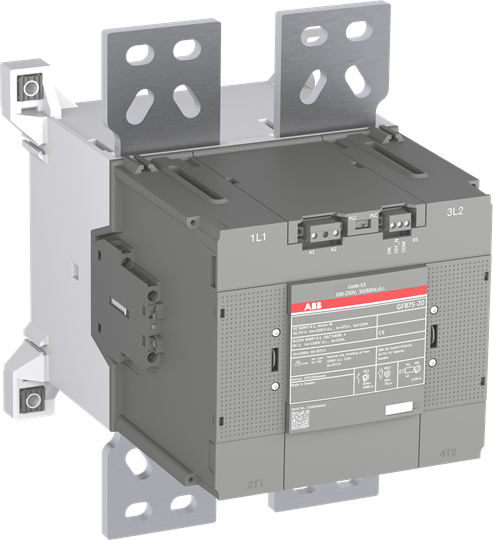

ABB GF875202253 GF Contractor 1500V Main Circuit Bar

Product Code: GF875202253

  • Rated voltage up to 1500 V
  • Contact config: 2NC+2NO
  • IP20 protection rating
  • Withstands current up to 6.2 kA
  • Operates in -40 to 70°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Block Contactor
Brand
ABB

Electrical

No. of Auxillary Contacts
4
Rated Control Supply Voltage (Us)
50 Hz 100-250 V60 Hz 100-250 VDC Operation 100-250 V
Rated Operational Current 1500V DC-PV3
(1500 V DC) 2-Pole, 60 °C 875 A(1500 V DC) 2-Pole, 70 °C 650 A
Rated Frequency
50 / 60 Hz

Dimensions & Physical Data

Depth
300 mm
Height
355 mm
Weight
14.3 kg
Width
253 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529,IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
