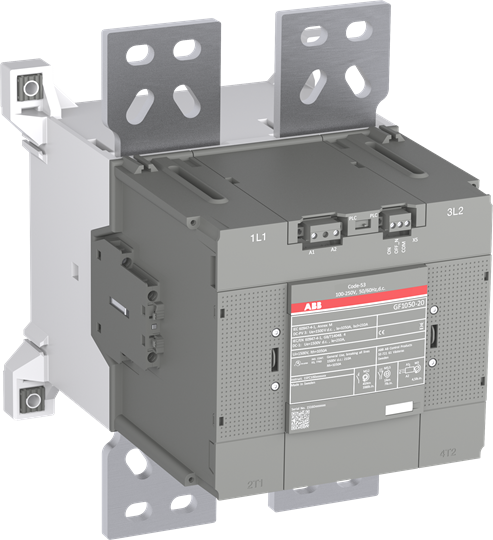

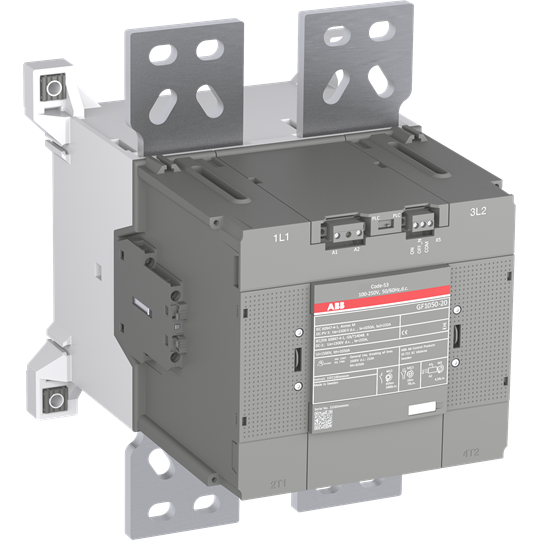

ABB GF1050202253 GF Contractor 2P 1500V

Product Code: GF1050202253

  • Suitable for 1500 V applications
  • Operates at 50/60 Hz frequency
  • Withstands impulse voltage up to 8 kV
  • Offers IP00 and IP20 protection levels
  • Compact size: W253 x H355 x D300 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switching Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100 ... 250 VAC/DC
Rated Operational Current 1500V DC-PV3
1050 A
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts
4

Dimensions & Physical Data

Depth
300 mm
Height
355 mm
Weight
14.3 kg
Width
253 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
