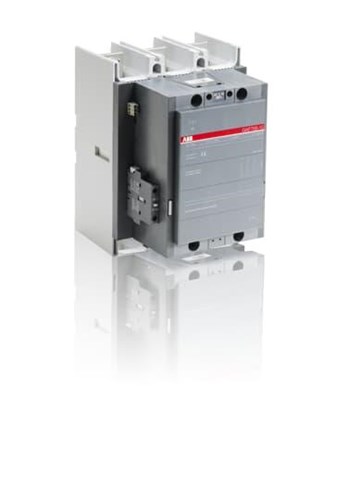

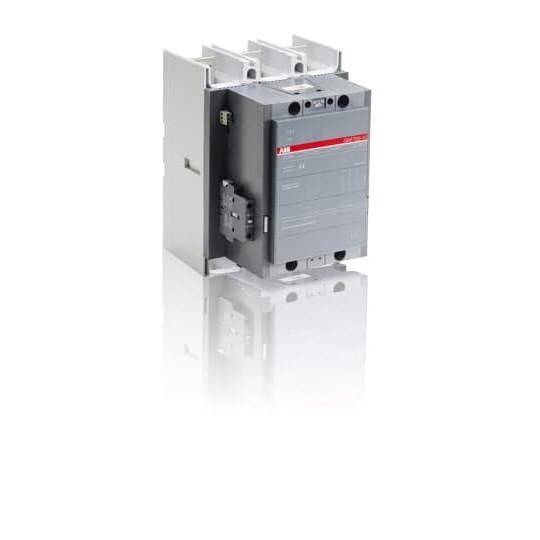

ABB GAF750101170 DC Contactor 3P 1NO 875A 100-250VAC/DC Bar Panel Mount

Product Code: GAF750101170

  • Handles 875 A at 100-250 VAC/VDC
  • Power loss of only 50 W
  • Rated impulse withstand voltage: 8 kV
  • IP20 protection for safe operation
  • Compact panel mount design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switching Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100 ... 250 VAC/DC
Rated Operational Current 1500V DC-PV3
875 A
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts
2

Dimensions & Physical Data

Depth
242 mm
Height
283 mm
Weight
14 kg
Width
210 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
