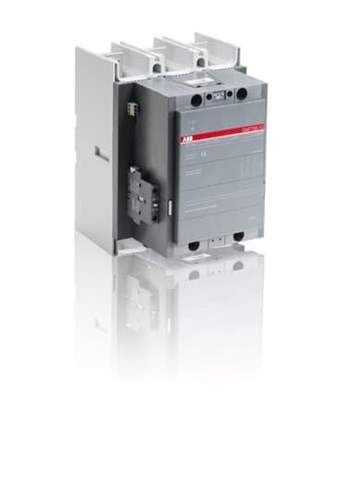

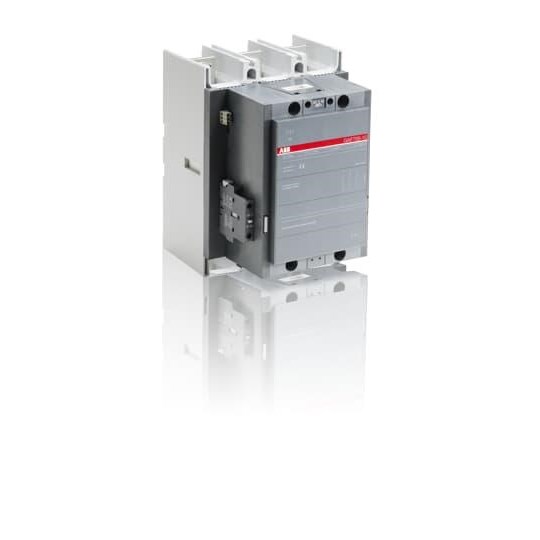

ABB GAF750101168 DC Contactor 3P 1NO 875A 24-60VDC Bar Panel Mount

Product Code: GAF750101168

  • Operates at 24-60 VDC with 875 A capacity
  • Low power loss of just 50 W
  • High impulse withstand voltage of 8 kV
  • Single normally open contact configuration
  • Panel mount design with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switching Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VDC
Rated Operational Current 1500V DC-PV3
875 A
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts
2

Dimensions & Physical Data

Depth
242 mm
Height
283 mm
Weight
14 kg
Width
210 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
