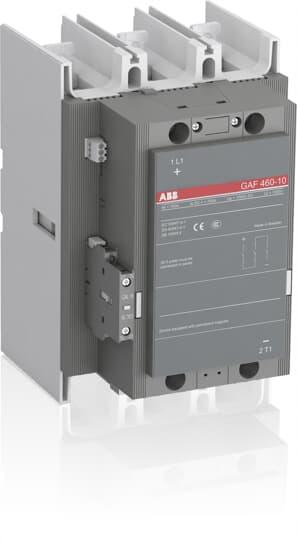

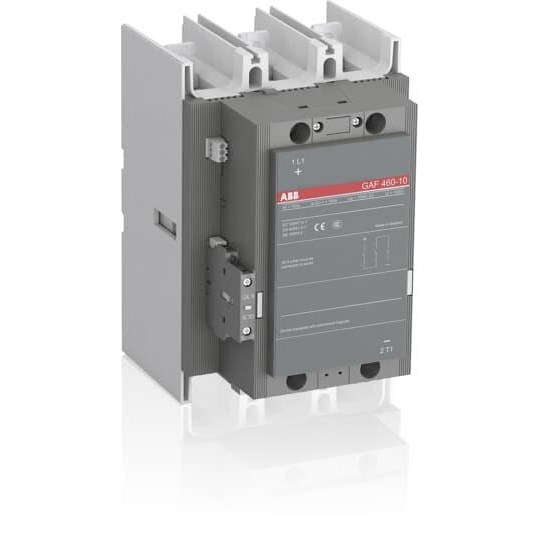

ABB GAF460101171 DC Contactor 3P 1NO 600A 250-500VAC/DC Bar Panel Mount

Product Code: GAF460101171

  • Handles 600 A with ease.
  • Suitable for 250-500 VAC/VDC.
  • Compact panel mount design.
  • IP20 protection rating.
  • Operates in -40 to 70°C range.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switching Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
250 ... 500 VAC/DC
Rated Operational Current 1500V DC-PV3
600 A
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts
2

Dimensions & Physical Data

Depth
216 mm
Height
278 mm
Weight
10.6 kg
Width
186 mm

Environmental

Ambient Temperature
-40 ... +80 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
