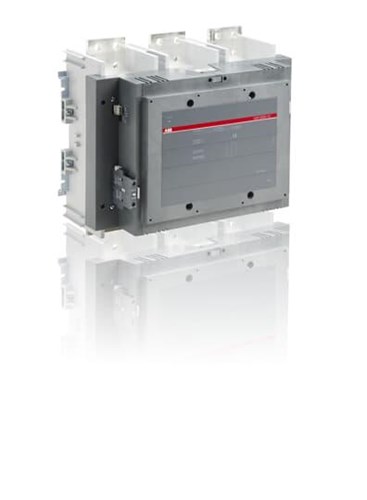

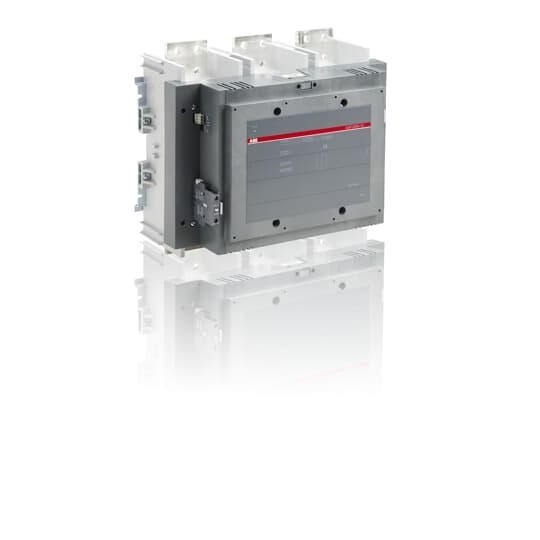

ABB GAF2050101170 DC Contactor 3P 1NO 1750A 100-250VAC/DC Bar Panel Mount

Product Code: GAF2050101170

  • DC Contactor with 1750 A current rating
  • Operates at 100-250 VAC/VDC
  • IP20 protection for safe use
  • Panel mounting design for easy installation
  • Compact size: 438x392x244 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switching Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
100 ... 250 VAC/DC
Rated Operational Current 1500V DC-PV3
1750 A
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts
2

Dimensions & Physical Data

Depth
244 mm
Height
392 mm
Weight
33 kg
Width
438 mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
