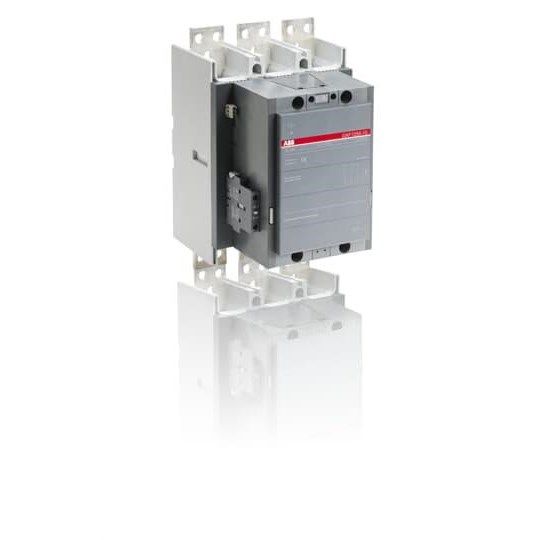

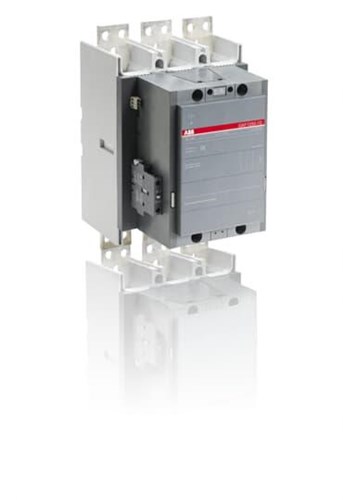

ABB GAF1250101171 DC Contactor 3P 1NO 1040A 250-500VAC/DC Bar Panel Mount

Product Code: GAF1250101171

  • Handles 250-500 VAC/VDC with 1040 A current
  • Low power loss at 80 W
  • High impulse withstand voltage of 8 kV
  • IP20 protection for safe operation
  • Compact design: 210x344x242 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switching Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
250-500VDC / 500 V AC
Rated Operational Current 1500V DC-PV3
1250 A
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts
2

Dimensions & Physical Data

Depth
242 mm
Height
344mm
Weight
15 kg
Width
210mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60530
