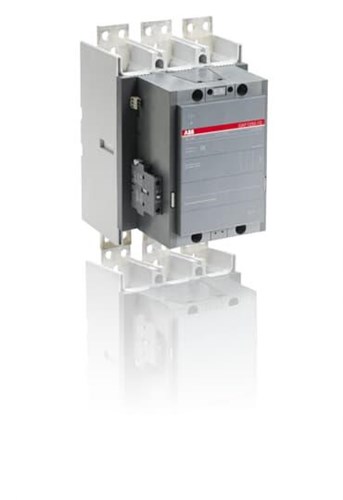

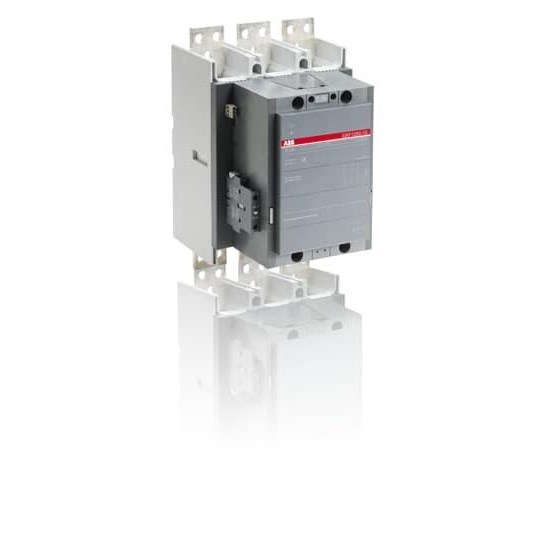

ABB GAF1250101168 DC Contactor 3P 1NO 1040A 24-60VDC Bar Panel Mount

Product Code: GAF1250101168

  • Suitable for 24-60 VDC applications
  • Handles up to 1040 A current
  • IP20 protection rating
  • Panel mounting design
  • Compact dimensions: 210x344x242 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Switching Contactors
Brand
ABB

Electrical

Rated Control Supply Voltage (Us)
24 ... 60 VDC
Rated Operational Current 1500V DC-PV3
1250 A
Rated Frequency
50/60 Hz
No. of Auxiliary Contacts
2

Dimensions & Physical Data

Depth
242 mm
Height
344mm
Weight
15 kg
Width
210mm

Environmental

Ambient Temperature
-40 ... 70 °C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529

Documents

IPD Product Catalogue V17
