Specifications

Product Type

Switch Fuse

Brand

ABB

Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out	Rated Impulse Withstand Voltage (Uimp) 12kV	Rated Insulation Voltage (Ui) 1000V
Rated Operating Voltage 690V AC	Rated Operation Power at AC-23, 400 V 30kW	Rated Operational Current AC21-A (Ie) 63A
Rated Operational Current AC22-A (Ie) 63A	Rated Operational Current AC23-A (Ie) 63A	Rated Short Time Withstand Current (Icw) 2500A
Power Loss 6W	Rated Current (In) 63A	No. of Poles 3P

Depth 165mm	Height 112mm	Weight 1.12kg
Width 112mm

Pollution Degree

IP Rating

IP20

Standards and Approvals

IEC 60947-3, IEC 60335-2-40, CCC, CE, DNV GL

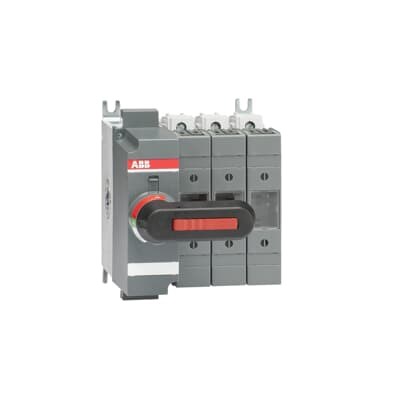

ABB FUSE SWITCH 63A 3P F/OPERTD IP65 C/W DIRECT HANDLE NH000 MECHANISM END OF SWITCH ABB OS63GD03K
