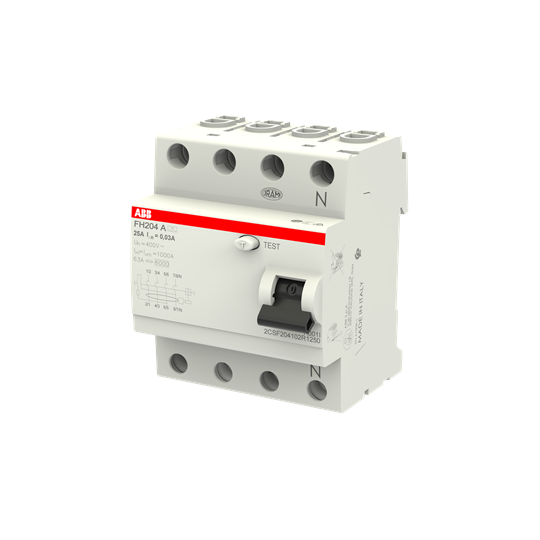

ABB FH204A25/0.03 Residual Current Circuit Breaker 4-P 25A 6 kA TypeA

Product Code: FH204A25/0.03

  • 25A RCCB with 4 poles for safety.
  • Rated voltage of 230/400 VAC.
  • IP20/IP40 protection rating.
  • Complies with IEC/EN 61008 standards.
  • Operates in -25 to 55°C.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breaker (RCCB)
Brand
ABB
Series
FH200

Electrical

No. of Poles (Total)
4P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V AC
Power Loss
1.3W
Rated Current (In)
25A
Rated Frequency
50Hz
Rated Voltage (Ur)
230/400V AC
Terminal Type
Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Conductor Cross Section Flexible
25mm²
Conductor Cross Section Solid Core
25mm²

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.35kg
Width
70mm
Width in No. of Modular Spacing
4
Pole Width
17.5mm

Environmental

Rated Surrounding Temperature Without Derating
-5°C to 40°C
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP20; IP40

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61008; AS/NZS 61008
