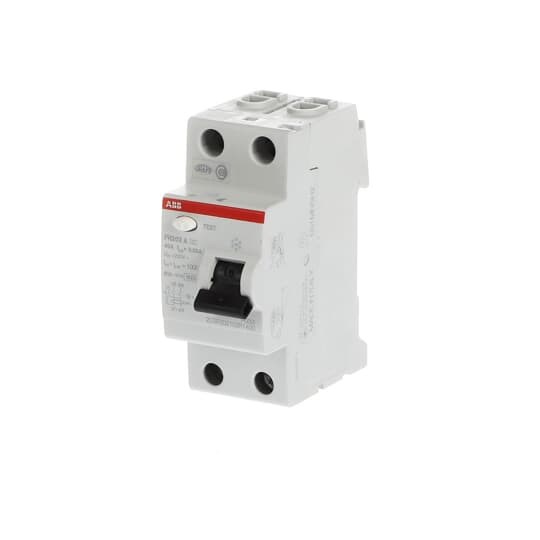

ABB FH202A40 Residual Current Circuit Breaker 2-P 40A 6 kA TypeA

Product Code: FH202A40

  • RCCB with 40 A rated current
  • 2-pole design for reliable protection
  • Complies with IEC/EN 61008 standards
  • Compact size: 35 mm width, DIN Rail mount
  • Operates at -5 to 40°C ambient temperature
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breaker (RCCB)
Brand
ABB
Series
FH200

Electrical

No. of Poles (Total)
2P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V AC
Power Loss
2.4W
Rated Current (In)
40A
Rated Frequency
50Hz
Rated Voltage (Ur)
230V AC
Terminal Type
Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Conductor Cross Section Flexible
10mm² to 25mm²
Conductor Cross Section Solid Core
25mm²

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.2kg
Width
35mm
Width in No. of Modular Spacing
2
Pole Width
17.5mm

Environmental

Rated Surrounding Temperature Without Derating
-5°C to 40°C
Storage Temperature
-40°C to 70°C
Operating Temperature
-5°C to 40°C
IP Rating
IP2X

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61008; AS/NZS 61008
