Specifications

Product Type

Residual Current Circuit Breaker (RCCB)

Brand

ABB

Series

FH200

No. of Poles (Total) 2P	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V AC
Power Loss 1W	Rated Current (In) 25A	Rated Frequency 50Hz
Rated Voltage (Ur) 230V AC	Terminal Type Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)	Residual Current Type Type A
Rated Residual Current 30mA	Electrical Life 10000 cycle	Mechanical Life 20000 cycle

Conductor Cross Section Flexible

10mm² to 25mm²

Conductor Cross Section Solid Core

25mm²

Depth 69mm	Height 85mm	Weight 0.2kg
Width 35mm	Width in No. of Modular Spacing 2	Pole Width 17.5mm

Rated Surrounding Temperature Without Derating -5°C to 40°C	Storage Temperature -40°C to 70°C	Operating Temperature -5°C to 40°C
IP Rating IP2X

Standards and Approvals

IEC/EN 61008; AS/NZS 61008

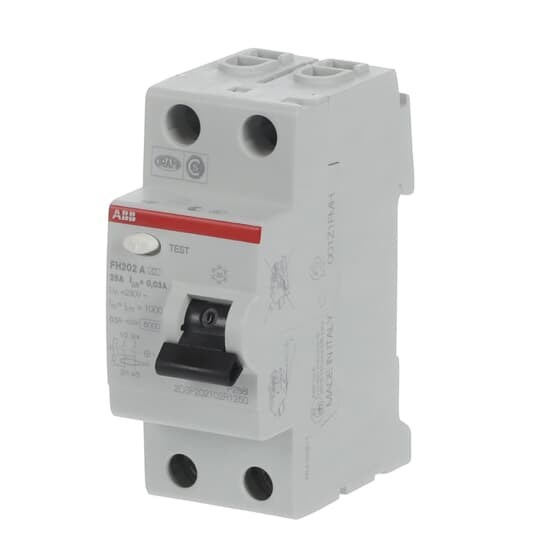

ABB FH202A25/0.03 Residual Current Circuit Breaker 2-P 25A 6 kA TypeA
