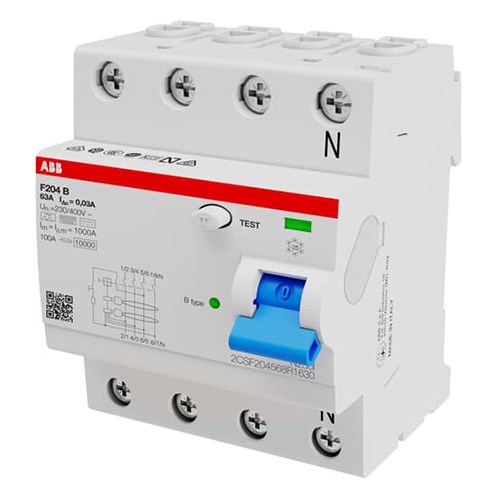

ABB F204B63/0.03 Residual Current Circuit Breaker 4-P 63A 10 kA 30mA Type B

Product Code: F204B63/0.03

  • Rated current of 63 A for reliable performance
  • Supports 230-400 VAC with 4 kV impulse withstand
  • Four-pole RCCB with IP20/IP40 protection rating
  • Suitable for DIN rail mounting, Type B residual current
  • Durable up to 10,000 electrical cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breaker (RCCB)
Brand
ABB
Series
F200

Electrical

No. of Poles (Total)
4P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V AC
Power Loss
15.6W
Rated Current (In)
63A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230/400V AC
Terminal Type
Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type
Type B
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Housing Type
Insulation group I-II; RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.38kg
Width
70mm
Pole Width
17.5mm

Environmental

Rated Surrounding Temperature Without Derating
-25°C to 50°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 50°C
IP Rating
IP4X (housing); IP2X (terminals)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61008-1; IEC/EN 61008-2-1; EN 62423
