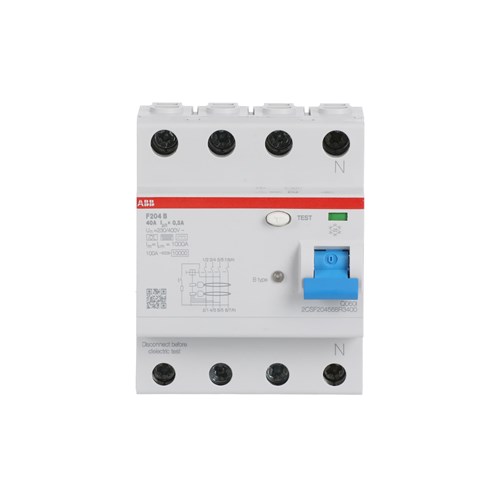

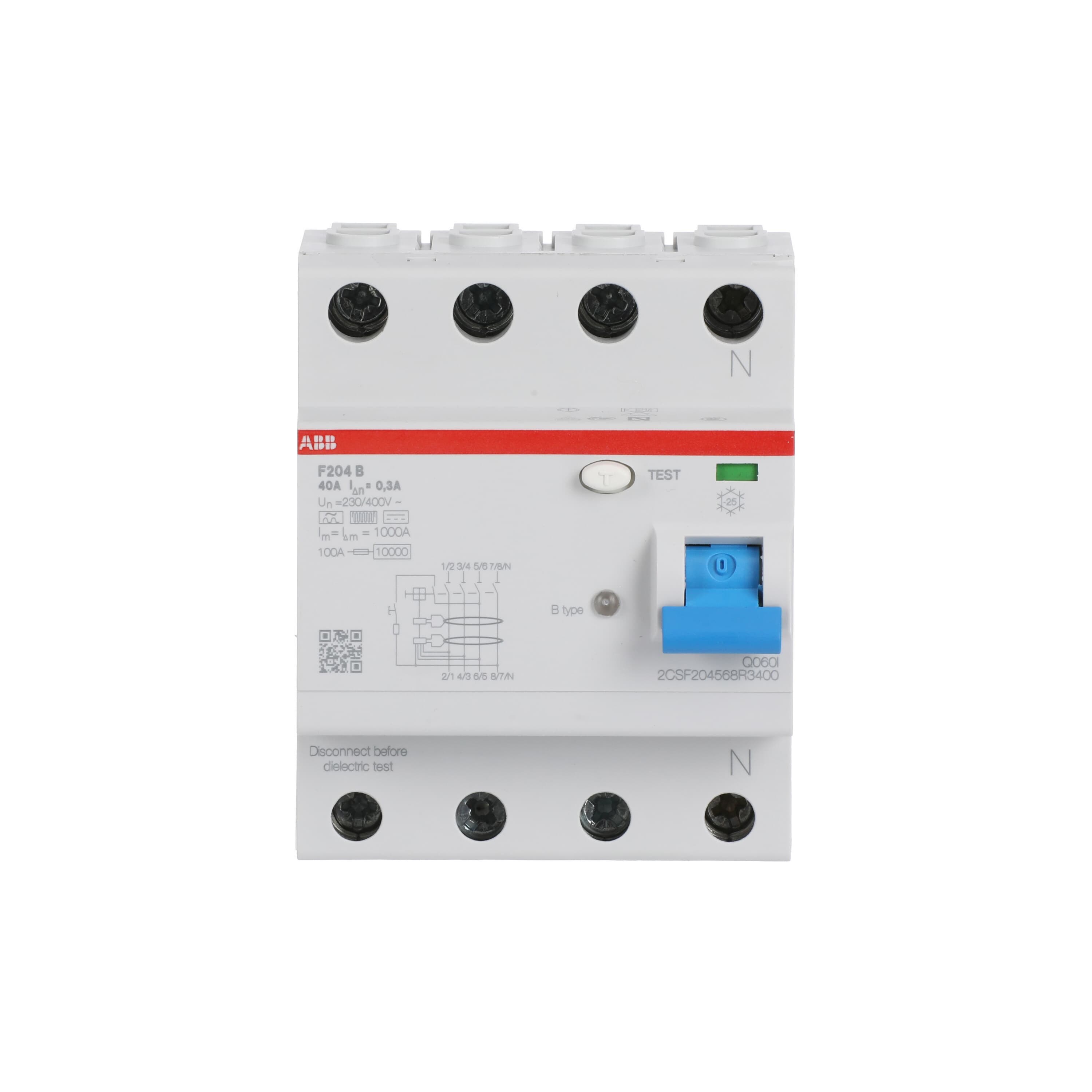

ABB F204B40/0.3 Residual Current Circuit Breaker 4-P 40A 10 kA Type B

Product Code: F204B40/0.3

  • Supports 40 A rated current, ideal for robust setups.
  • Handles voltage range of 230-400 VAC effectively.
  • Offers IP20/IP40 protection for reliable safety.
  • DIN rail mountable, ensuring easy installation.
  • Instantaneous operation for quick response.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breaker (RCCB)
Brand
ABB
Series
F200

Electrical

No. of Poles (Total)
4P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V AC
Power Loss
6.95W
Rated Current (In)
40A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230/400V AC
Terminal Type
Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type
Type B
Rated Residual Current
300mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Housing Type
Insulation group I-II; RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.38kg
Width
70mm
Pole Width
17.5mm

Environmental

Rated Surrounding Temperature Without Derating
-25°C to 65°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 65°C
IP Rating
IP4X (housing); IP2X (terminals)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61008-1; IEC/EN 61008-2-1; EN 62423
