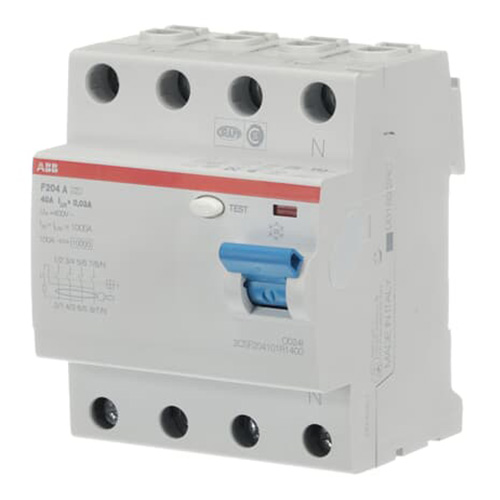

ABB F204A40/0.03 Residual Current Circuit Breaker 4-P 40A 10 kA 30mA TypeA

Product Code: F204A40/0.03

  • Rated current of 40 A
  • 4-pole RCCB for enhanced safety
  • IP20/IP40 protection rating
  • Compatible with DIN rail mounting
  • Operates at 230/400 VAC
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
RCCB
Brand
ABB
Series
F200

Electrical

No. of Poles (Total)
3P+N
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
40A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230/400V
Terminal Type
Screw Terminals
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000
Mechanical Life
20000

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.36kg
Width
70mm
Width in No. of Modular Spacing
4
Pole Width
18mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP2X, IP4X

Safety, Standards & Compliance

Standards and Approvals
IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

Other

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1
10kA
