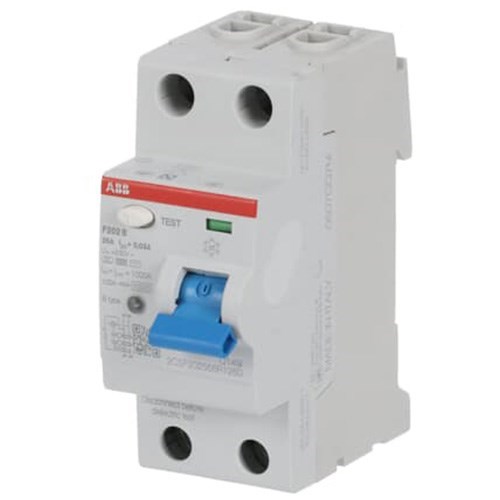

ABB F202B25/0.03 Residual Current Circuit Breaker 2-P 25A 10 kA 30mA Type B

Product Code: F202B25/0.03

  • Rated current of 25 A for reliable protection
  • Dual pole design ensures comprehensive coverage
  • Compact dimensions: 35mm width, 85mm height
  • Operates efficiently at -25 to 70°C
  • DIN Rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breaker (RCCB)
Brand
ABB
Series
F200

Electrical

No. of Poles (Total)
2P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V AC
Power Loss
1.58W
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230V AC
Terminal Type
Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type
Type B
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Housing Type
Insulation group I-II; RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.22kg
Width
35mm
Width in No. of Modular Spacing
2
Pole Width
17.5mm

Environmental

Rated Surrounding Temperature Without Derating
-25°C to 70°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP4X (housing); IP2X (terminals)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61008-1; IEC/EN 61008-2-1; EN 62423
